Product Details:
|
| Warranty: | 1 YEAR | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA894 | Max. Load Force: | 100/300/600/1000/1500/2000KN |
| Control: | Computer | Color: | White Or Others |
| Power: | Hydraulic | Usage: | Metal Or Nonmetal Materials Test |
| High Light: | Electro Tensile Compression Tester,Hydraulic Tensile Compression Tester,300kn Hydraulic Universal Testing Machine |
||

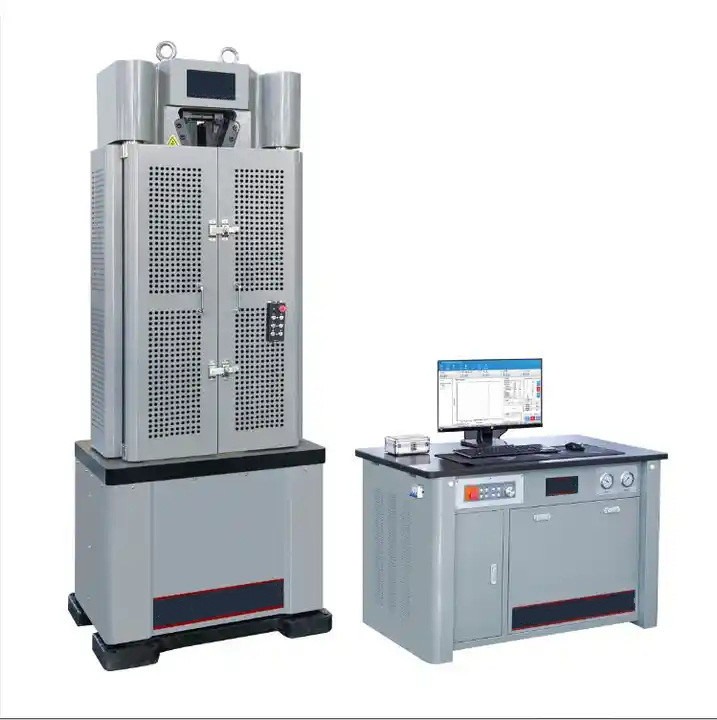

Electro Compression Tensile Machine 60 Ton Hydraulic Universal Testing Machine300kn
Application:
Computer control electro servo Material Hydraulic Universal Testing machine adopts the oil cylinderunderneath mode. Mainly used for the tensile , compression, bending,shearing and other tests of mental and nonmental materials. Applicable to the metallurgy, constructio, light industry, aviation, space, material, scientific research institutes, colleges, etc.
Feature
1. The test specimen hydraulic automatic clamping
2. Test force step:equivalent four files (constant resolution )
3. Control way:Constant stress, constant deformation, constant displacement three closed loop contro
Standard:
GB228-2002 Room temperature material tensile test standard test method
ASTM E8M Mental material tensile test standard test method
EN10002-I Mental material room temperature tensile test
ISO6892-1-2009 Mental material room temperature tensile method
ASTM C39 Cylindrical concrete specimen compressive strength test
Technical parameter:
| Model | GSA894 | GSA895 | GSA896 | |||
| Max load (kN) | 300 | 600 | 1000 | |||
| Structure | 6 column | |||||
| Control way |
constant stress uniform deformation constant displacement three closed loop control and program control |
|||||
| Load accuracy | ≤±1% or ≤± 0.5% | |||||
| Load range | 2%-100%FS or 0.4%-100%FS | |||||
| Load resolution | 1/300000 | |||||
| Deformation Measurement Range | 2%~100%FS | |||||
| Deformation accuracy | ≤±1%/± 0.5% | |||||
| Displacement resolution | 0.01mm | |||||
| Displacement error | ≤±0.5% | |||||
| Max.piston stroke | 250mm | |||||
| Max. tension test space | 650mm (can customize) | |||||
| Max.Compression Test Space | 500mm (can customize) | |||||
| Oil cylinder moving speed | 140 | 90 | 50 | |||
| Crosshead moving speed | 200 | 150 | 120 | |||
| Effective space between columns (mm) | 430 | 475 | 525 | |||
| Round specimen clamping range | Φ10-Φ32mm | Φ13-Φ40mm | Φ13-Φ40mm | |||
| Flat specimen clamping range | 0-15mm | |||||
| Clamping method | Hydraulic clamp | |||||
| Clamp height | 70mm | 90mm | 90mm | |||
| Clamping width | 75mm | 80mm | 80mm | |||
| Compression plate size | φ160mm | |||||
| Bending roller distance | 450mm | |||||
| Width of bending rollers | 120mm | |||||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | |||||
FAQ:
Q1:Are your company a trading one or a factory?
A: Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q2:After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times
depend on specific items and item quantities.
Q3:What about the warranty with after - sales services?
A: The testing machine is guaranteed for 16 months ,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q4:What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. Products are widely recognized and trusted by users.
