Product Details:
|
| Radon Module Probe: | 4 X 200mm2 | Aerosol Collection Probe: | Diameter 44mm, Length 100mm |
|---|---|---|---|
| Aerosol Measurement Range: | 0 To 1MBq/m3(EEC) Data | Storage: | 2 GB SD Card |
| Built-in Pump: | 0.30L/Min, Continuous Or Intermittent Sampling | Certificate: | CE SGS ROHS UL |
| High Light: | Patrol Mobile Radiation Monitor,RAD Radiation detection system,4 x 200 mm2 Mobile Radiation Monitor |
||

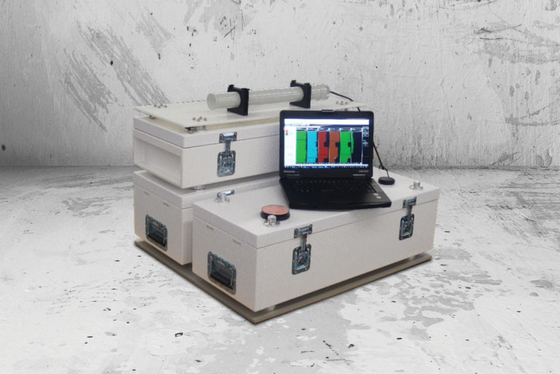

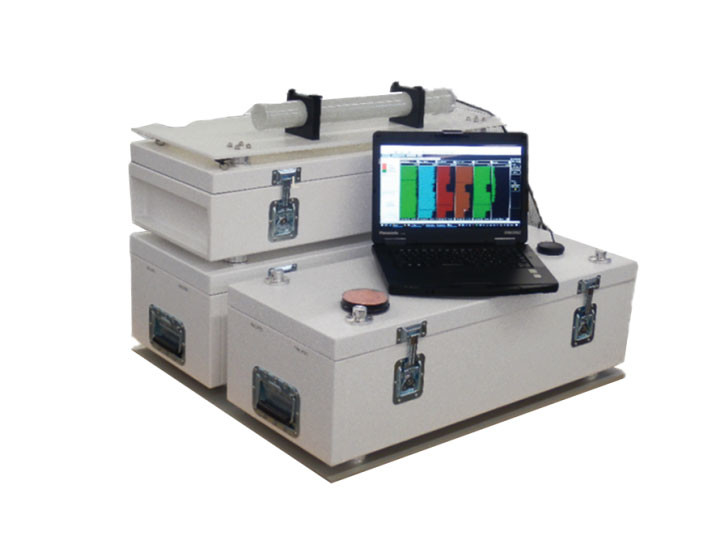

RAD Patrol Mobile Radiation Monitor Radiation Detection System
The RAD Patrol mobile radiation detection system can be installed on fixed-wing aircraft, helicopter platforms or vehicles. The standard system includes a Nal(T1) radiation detection module with an effective detection volume of 16 liters, a high dose rate Gamma module, a mission navigation system, a data acquisition system, a real-time calculation program, precision positioning equipment (GPS and altimeter), and optional detector modules including a neutron detector and a GM detector.
Feature
Calibration: Multi-peak self-calibration, does not require any radioactive sources
Stability: The system automatically stabilizes at natural peaks
Identification: Nuclide library (nuclear, medical, industrial, customizable)
Real-time activity calculations of natural radionuclides and selected man-made isotopes
Technical parameters:
Scintillator detector
Detector: 2x4 L Nal(TI) crystal detector
Resolution: < 8.5% (Cs137, 662keV)
Energy range: 20keV-3MeV
MCA resolution: 256/512/1024/2048
Count rate: Up to 250000cps
Neutron detector
Detector: 1.5 L LiF-6/ZnS (solid state) detector
Integrated moderating material
Sensitivity: 170 cps/nv
High dose rate detector
Detector: Energy compensating GM tube
Energy range: 50keV~-1.3MeV
Measuring range: 300nGy/h~10mGy/h
