Product Details:
|
| Sensitivity: | 1μCi/m3 (0.05DAC) | Measuring Range: | 1 μCi/m3 ~ 199,999 μCi/m3 |
|---|---|---|---|
| Flow Rate: | 1L/min | Zero Point Stability: | ±1μCi/m3 |
| Analog Output: | 0-5 V Linear Or Logarithmic Voltage Output | Certificate: | CE SGS ROHS UL |
| High Light: | Portable Tritium Monitor In Air Monitor,7043 Portable Tritium Monitor 7043 Portable Tritium Monitor,1L/min Tritium Portable Monitor |
||

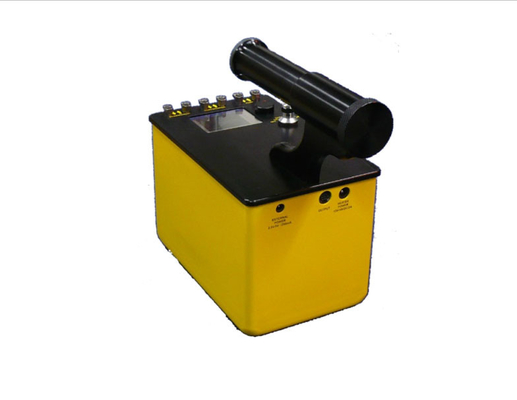

7043 Portable Tritium Monitor In Air Monitor
This easy-to-use monitor is a rugged, portable instrument with all the latest technologies. Adding this monitor to the collection of standard portable devices currently used for health physical monitoring could improve overall tritium monitoring capabilities. Gamma background compensation is critical in tritium measurements because the ImR/Hr of the gamma field will produce 500 times the ionization produced by 1 μCi/m3 tritium. Tyne designed a 4-chamber cruciform (250 ml each) handheld tritium in air monitor, each chamber connected to an ultra-sensitive electrometer amplifier and filter. All signals pass through an ADC converter, which is calculated by a microprocessor and displays the tritium value. To cover a high range of tritium, a separate small ion chamber is used. Measurements such as flow from solid state flowmeters and chamber temperature are monitored by a microprocessor.
Technical parameter
Sensitivity: 1μCi/m3 (0.05DAC)
Accuracy: ±3μCi/m3 (1-100μci /m3)
+10% (100μCi/m3 ~ 20,000μCi /m3)
Measuring range: 1 μCi/m3 ~ 199,999 μCi/m3
Detectors: 4 ionization chambers, 2 measurement chambers, 2 compensation chambers
Effective volume of ionization chamber: 500cm3 (2 ionization chambers 250cm3)
Flow rate: 1L/min
Zero point stability: ±1μCi/m3
y measurement: Measurement of tritium at the same time can measure y radioactivity. Measuring range: 0.1mR/h ~ 10R /hr
Radon compensation: Built-in compensation function
Inert gas compensation: Can be set to inert gas compensation mode **/ decontamination: All 4 ionization chambers can be decontaminated using a box heater
Display: Graphical touch LCD display, digital display of measured values (tritium and y), graphical display of trends
Communication: RS232 (short distance) or RS485 (long distance)
Analog output: 0-5 V linear or logarithmic voltage output
Power supply: 2.5V-5V external power supply or 3 C-type batteries, total power consumption 150mA
Response time: 30s to 90% of the signal
