Product Details:
|
| Measuring Range (10cc Ionization Chamber): | 0~ Pure Tritium | Measuring Range (1000cc Ionization Chamber): | 0 ~10 Ci/m3 |
|---|---|---|---|
| Operating Temperature (ionization Chamber): | 15℃ ~ 200℃ | Relative Humidity: | 0%~95% |
| Power Supply: | 1/2A,220 VAC, 50/60 Hz | Size (1000cc Chamber): | Diameter 11.43cm X 38cm (L) |
| High Light: | Tritium Measuring Instrument,Model 7000 Tritium Instrument,60 Hz Tritium Measuring Instrument |
||

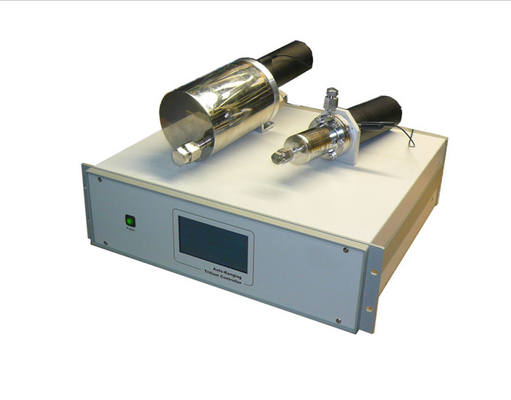

Model 7000 Process Tritium Measuring Instrument
The Model 7000 process tritium measuring instrument is used for tritium monitoring of various requirements such as glove box monitoring, pipeline monitoring, indoor air monitoring, and supporting the use of Tyne 1000cc and 10cc ionization chambers. The activity concentration of pure tritium can be measured when a 10cc ionization chamber is used. A Model 7000 controller can be connected to two ionization chambers simultaneously.
Technical parameters:
Detection sensitivity (10cc ionization chamber) : 0.1 mCi/m3
Detection sensitivity (1000cc ionization chamber) : 1μCi /m3
Response time: < 10s
Measuring range (1000cc ionization chamber) : 0 ~10 Ci/m3
Measuring range (10cc ionization chamber) : 0~ pure tritium
Flow (1000cc ionization chamber) : 1L/s (recommended), 2L/s (maximum) Flow (10cc ionization chamber) : 1L/s
Operating temperature (ionization chamber) : 15℃ ~ 200℃
Operating temperature (controller) : 0℃~50℃
Relative humidity: 0%~95%
Leakage: < 1x10-9 atm-cc/s helium
Temperature drift: less than 1 μCi/℃
y drift: 0.1Ci /m3 per 1 R/h, linear y field range 10-3 R/h~102R/h
Gamma compensation
Background compensation: one key automatic zero
Controller position: * 100m away from probe
Digital output: RS232
Power supply: 1/2A,220 VAC, 50/60 Hz
Controller size: Standard chassis 48.26cm x 12.7cm high
Size (1000cc chamber) : Diameter 11.43cm x 38cm (L)
Size (10cc ionization chamber) : Diameter 7.6cm x 38cm (L)
