Product Details:
|
| Measuring Range: | 5~19999kBq/m3 | Warm-up Time: | Less Than 30 Minutes |
|---|---|---|---|
| Measuring Capacity: | 6500cm3 | Structural Materials: | E-commerce Room, Stainless Steel, Electrometer Shell, Aluminum |
| Application: | Radiation Monitor | Certification: | CE SGS ROHS UL |
| High Light: | Tritium Radiation Monitor,On-Line Tritium Radiation Monitor,Model 321 Tritium Monitor |
||

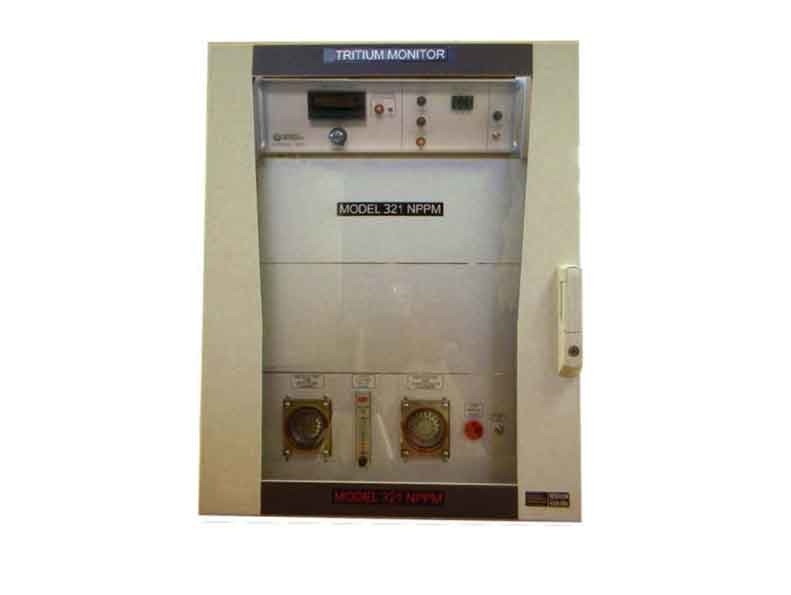

Model 321/421 On-Line Tritium Monitor Radiation Monitor
This tritium monitor is a version of the OTC standard 321/421 series, configured for the special environmental conditions associated with nuclear power plants, especially those of the CANDU type. This monitor can be used for other applications where tritium specific measurements in the presence of other radionuclides are required.
Product features:
Special measurement of tritium and its oxides
Not affected by other nuclides, including reactor gas and hydrogen dual ionization chamber design gamma compensation
Zero drift
Durable industrial housing
Technical specifications
| Range, typical | two, automatically switch 0.1 – 10,000 μCi/m3 low range 1.00 – 200.00 mCi/m3 high range other ranges available |
| DISPLAY | 4½ digit DPM |
| ACCURACY | ±2 % of reading, ± L.S.D., whichever is greater |
| STABILITY AND DRIFT |
±1.0 μCi/m3long term (thirty days), ambient temperature conditions
|
| NOISE | ± 1.5 MBq/m3, 1 sigma with alpha suppression in use |
| RESPONSE RATE | three linear electronic time constants approximately 40 seconds for signals up to about 80 μCi/m3 approximately 10 seconds for signals from 80 to 10,000 μCi/m3 approximately 3 seconds for signals above 1.00 mCi/m3 |
| WARM UP TIME | less than 10 minutes |
| VOLUME | measuring: 1,200 cm3 total wetted: 2,000 cm3 |
| TEMPERATURE | storage: -40°C to +65°C operating: +0°C to +55°C |
| HUMIDITY | 0 to 95 % R.H. (non-condensing) |
| VOLTAGE | 230 VAC +10 %, 50 Hz, 20 W max |
