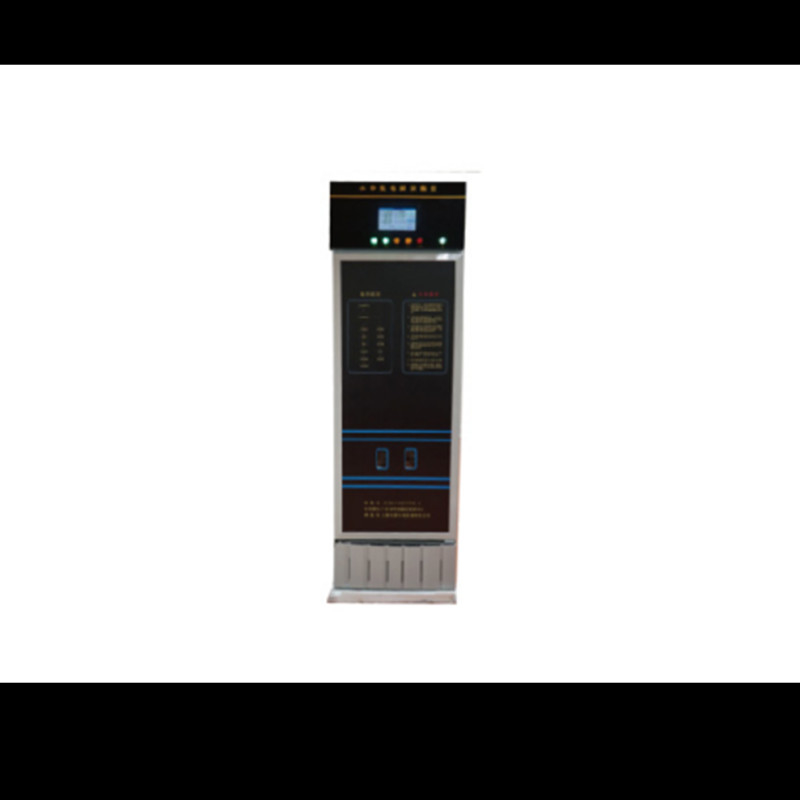

ECTW-1 Tritium Electrolysis Concentration Device In Water

ECTW-1 Tritium Electrolysis Concentration Device In Water

ECTW-1 water tritium electrolysis concentration device. It is used for the concentration and enrichment of tritium inl environmental water samples.

Product features:

High precision, good repeatability, and long-term stability

Simple and convenient to use: does not involve acid-base neutralization reactions, does not require liquid nitrogen, and has a high degree of automation for carbon dioxide

Good safety: The generated H2 and O2 gases are separated by a semi permeable membrane to avoid mixed combustion and explosion of H2 and O2 in the device, resulting in a long service life of the electrolytic cell

technical parameter:

Concentration multiple: 210 times (700ml sample)

Tritium recovery rate: 266% (700ml sample)

Electrolysis time: <52 hours (700ml sample)

Concentration multiple: 27 times (350ml sample)

Tritium recovery rate: 266% (350ml sample)

Electrolysis time: <24 hours (350ml sample) Stability: relative standard deviation of electrolysis times 1.3%Standard deviation of tritium recovery rate <10%, standard deviation of concentration multiple <3% (700ml sample)

Repeatability: The relative deviation of the measurement results is less than 10% (the size of the deviation is related to the level of the sample, and the probability of the deviationbecoming larger close to the detection limit is higher, 700ml sample).

Electrolyzer service life: >5000h

Cooling temperature: 5-10 ℃
