Product Details:
|
| Vacuum Degree: | Atmospheric Pressure 3KPa | Material: | Stainless Steel |
|---|---|---|---|
| Temperature Uniformity: | ±2℃ | Brand: | GSKA |
| Keyword: | Industrial Drying Oven | Temperature Resolution: | 0.1 |
| Temperture Range: | RT+10℃～500℃ | Power: | Electronic |
| High Light: | Environment Test Equipment,Environment Chamber |
||

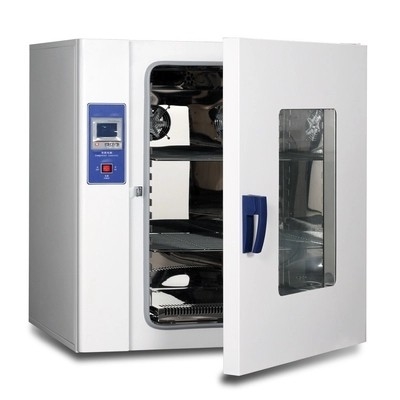

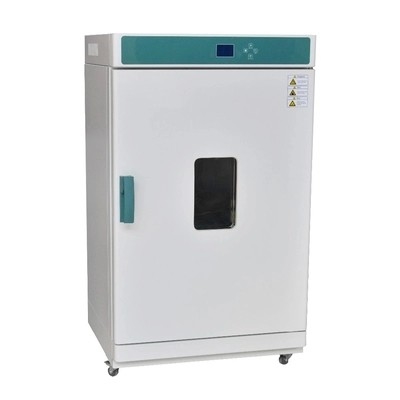

ROHS 380V Hot Air Industrial Drying Oven Anti Explosive 3KPa
Technical parameters:
1. Temperature control range: RT+10 ~ 200℃, 250℃, RT+5℃ ~ 65℃
2. Studio material: high quality stainless steel plate (or cold binding plate)
Vacuum drying oven is designed for drying heat-sensitive, easily decomposed and easily oxidized substances, can be flushed into the interior inert gas, especially some of the components of the complex items can also be fast drying.
Vacuum drying oven is an older drying device. The oven is divided into several layers by heating plate. Hot water or low-pressure steam is poured into the heating plate as the heating medium, and the material tray spread to be dried is placed on the heating plate. The door of the box is closed, and the vacuum is pumped into the box with a vacuum pump. The heating plate will heat the drug to the specified temperature in the circulation of the heating medium, and the water will start to evaporate and gradually remove with the vacuum. This EQUIPMENT is EASY to control, can condense and recover the evaporated solvent, the drug is not easy to be polluted in the drying process, can be used in drug drying, packaging material sterilization and heat treatment.
API industry use the equipment in the 1980 s as the main dryer, but as a result of not easy to online online cleaning and sterilization of materials plate, drying speed slow, workers labor intensity, and to realize drug homogeneity, drying by blending device after mixing, active pharmaceutical ingredients has been rarely used on mass production now, more than heat treatment used for medium and small production or packaging material sullair air compressor parts
Main Feature of vacuum drying oven price:
A vacuum drying oven is widely used in biochemical, chemical engineering, pharmaceutical, medical care and public health,agricultural scientific research, environmental protection and other research areas. It is applicable for powder drying, baking,as well as the disinfection and sterilization of various glass containers. In particular, it is suitable for rapid and efficient drying treatment of heat-sensitive, easily decomposed, easily oxidized materials and complex components.
Can be customized:
| Industrial Drying Oven | ||||||
|
Inner Size W*H*D (cm) |
External Size W*H*D (cm) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| 45×40×40 | 66×92×55 |
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| 50×60×50 | 70×125×65 | 4.5 | ||||
| 60×90×50 | 80×156×65 | 5.5 | ||||
| 80×100×60 | 100×166×75 | 8 | ||||
| 90×120×60 | 110×186×75 | 10 | ||||
| 140×120×60 | 160×186×75 | 12 | ||||
| 160×140×80 | 180×206×97 | 14 | ||||
| 180×140×100 | 200×200×118 | 16 | ||||
| This model is based on your requirements, including the design. | ||||||
Best material and stable performance:
The outer shell is made of high-quality steel plate, the surface is electrostatically sprayed, the inner liner is made of
galvanized sheet, and the outer casing is filled with thermal insulation material. The silicone sealing strip is used between the box door and the box body, which is safer to use and has a longer service life.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
