Product Details:
|
| Useful Volume: | Customized | Heat Up Rate: | About 3℃~5℃/min； Can Be Custom |
|---|---|---|---|
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Walk In Test Chamber | Cooling Rate: | 1 ℃ / Min |
| Brand: | Walk In Test Chamber | ||
| High Light: | Environment Test Equipment,Environment Chamber |
||

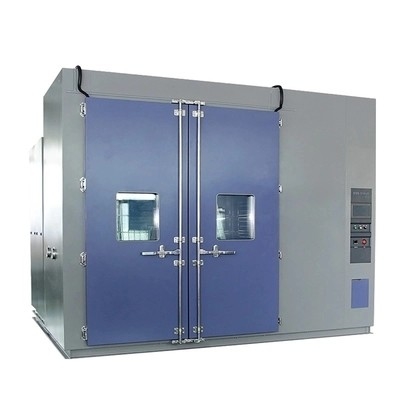

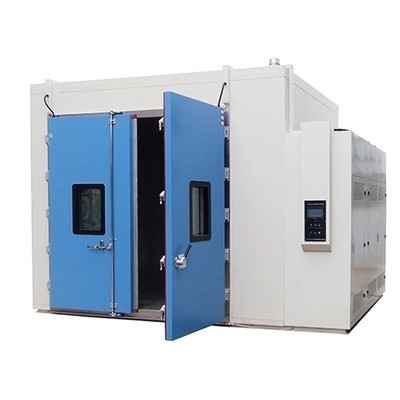

ROHS Humidity Walk In Test Chamber Explosion Proof PID Control
Refrigeration & Heating System:
1) Original imported high efficiency compressor
(2) Air cooling condenser
(3) Fin-tube heater
(4) Original imported solenoid valves
(5) Inner spiral K-type refrigerant copper tube
(6) U-Type finned electro thermal tube
(7) P.I.D control heating & cooling systems separated
(8) Double stage refrigerating system
Features:
1. Realize temperature constant value control and program control;
2. The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3. With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6. Customize size/customize indicators/customize various optional features
| Product Name | Walk in Environmental Chamber Temperature Humidity Test Chamber | |
| Model | Walk-Ins | |
| Internal dimension (mm) | As request | |
| Overall dimension (mm) | As request | |
| Temperature range | A: -20℃ ～+150 ℃
B:-40℃ ～+150 ℃
C:-70℃ ～+150 ℃
|
|
| Humidity range | 20% ~ 98% RH | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Temperature deviation | ± 2.0 ℃ | |
| Humidity deviation | ± 2.5% RH | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Humidity sensor | Dry and wet bulb sensor | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
