Product Details:
|
| Warranty: | 1 Year | Cooling Speed: | 1~1.5C/min |
|---|---|---|---|
| Power: | Electronic | Temperature Range: | -40℃/-70℃~+150℃ |
| Certificate: | CE Certificate | Heating Speed: | 3℃/min |
| Interior Material: | SUS#304 Stainless Steel | Humidity Range: | 20%~98% |
| High Light: | Environment Test Equipment,Environment Chamber |
||

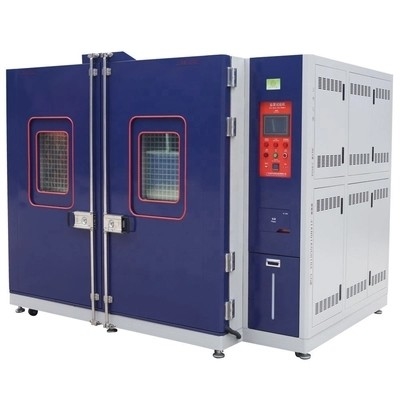

Walk-In Environmental Test Chamber For Temperature And Humidity Test
The walk-in constant temperature and humidity test room simulates specific environmental conditions for automobiles, large components, large semi-finished products and finished products. Such as sample evaluation, R&D test production test, accelerated stress test, reliability test, failureanalysis, and other applications that require environmental simulation. Due to the design of the door ofthe test room or the limitation of the placement of the chamber, large-scale walk-in constant temperature and humidity rooms often face difficulties such as area limitation during installation. In order to solve this problem, Jian Qiao specially designed the two types of panel assembly and overall structure. Solve the problem of site restrictions.
Executive standard:
1. Our test chambers meet following standards:
GB/T10592-2008 high and low temperature test chamber technical conditions
GB/T2423.1-2008 Low temperature test chamber test method
GB/T2423.2-2008 high temperature test chamber test method
GB/T2423.3-2006 Test method for humidity heat test chamber
GB/T2423.4-2008 alternating and humidity test method
GJB150.3 high temperature testGJB150.4 low temperature test
GJB150.9 humidity test
2.testing chamber performance confirmation meetsthe standard:
GB/T2424.5-2006 Environmental Test for Electricaland Electronic Products
GB/T2424.6-2006 Environmental testing of electricaland electronic products Temperature Performancetest of humidity test chamber
GB/T5170.2-2008 electronic and electrical productsenvironmental testing equipment inspection method +temperature test equipment
JJF1101-2003 Environmental Test Equipment Temperature and Humidity Calibration Specifications
|
Inner size W*D*H(cm) |
200*200*200 or customized |
| Outer size W*D*H(cm) | 230*360*240 or customized |
| Machine capacity (L) | 8m3 |
| Temp.Range | -70℃/-40℃~85℃/120℃/150℃/180℃ or customized |
| Humid.range | 20 % to 98% RH |
| Temp.fluctuation | ±0.5℃ |
| Temp.variation in space | ±2℃ |
| Cool down rate | 1℃/min or customized |
| Heat up rate | no-load 3℃/min or customized |
| N.W capacityt(L) | 8.0m³ |
| N.W weight(kg) | Base for the actual weight |
| Exterior material |
Standard color steel plate cold-roll steel sheets with coating Laminating metal sheet |
| Interior material | SUS 304# Stainless steel plate sus304 |
| Floor load resistance | customized |
| Door | PWM control |
| Controller | TW DELTA PLC,7 " or 10" color touch screen control |
| Configuration interface | With USB , WLAN, RS232 port , APP function is optional |
| Compressor | French Tecumseh or Germany Bitzer brand or Bock |
| Protector |
Korea imported adjustable Autonics Over-temperature protector Korea rainbow dry burn protector ,humidifier ,water shortage protector Overload protector ,over-pressure protector ,earth leakage protector |
| Power supply | AC380V @50Hz |
FQA:
Q: What is your transportation?
A: Ship from Shenzhen port by sea.
Q: What is your package?
A: packed in one fumigated heat treating wooden package or polywood case . Your requirements are also allowed.
Q: What is about the delivery time?
A: Within 15~20days after your payment.
Q:Why Choose you?
1.We are professional test equipment manufacturer in china, has excellent experience.
2.We have advanced machine equipment, can cost your savings.
3.We supply 24 hours online service to solve your every question.
