Product Details:
|
| Interior Material: | SUS304# Stainless Steel | Temp. & Humid. Deviation: | ≤1.0deg; ≤2%R.H. |
|---|---|---|---|
| Humid. Range: | 20% ~98%R.H. | Water Quality: | Distilled Water Only, 20L Water Tank Capacity |
| Exterior Material: | Stainless Steel With Baking Paint | Power: | 220V , 50Hz |
| Controller Resolution: | ±0.3℃；±2.5%RH | Controller: | Touch Screen Controller |
| High Light: | Environment Test Equipment,Environment Chamber |
||
Temperature And Humidity Substitute Climate Test Chamber Cold Balance Control
Brief Introduction:
Temperature humidity environmental test chamber simulats under the condition of product in humid climate environment combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself.
Unique shape with high performance material, used to testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components.
Temperature and humidity test chambers are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing.
Features:

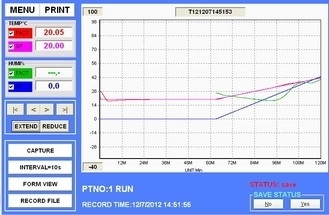

1, Touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.
2, Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.
3, Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.
4, RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.
5, Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.
6, Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.
7, Left side of chamber with diameter 50mm cable port for power-on test.
8, Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.
Specification:
| Voltage | 1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized |
| Temperature range | -70℃ ～180℃ |
| Humidity range | 10% ～98%RH (5%~98% R.H. customized) |
| Temp.& humidity control fluctuation | ≤±0.5℃, ≤ ±2.5%RH |
| Indication resolution | 0.01℃, 0.1 %RH |
| Temp.&humidity Uniformity | ≤±1.5℃,≤±2.5% RH |
| Heat up&Cool down time | ≤5℃/min for heating; ≤ 1.2℃/min for cooling |
| Cooling type | Air cold |
| Chamber materials | SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
| Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm |
|
|
Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet; Humidifying and humidity measuring water utilization control device |
|
|
Heat emission blower fan Distribution switchboard Test terminal of sample USB physical interface (need to be purchased together with centralized monitoring software) Residual current circuit breaker of main power supply |
|
|
Basin heating humidifying method Stainless steel armored heater is adopted in basin humidification Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) Water level control device, dry heating prevention device of heater |
| Humidifier | 1.Basin heating humidifying method 2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay) 3.Water level control device, dry heating prevention device of heater |
|
|
Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure indicator |
|
|
Imported Compressor Fits wide range of pressure Higher heating efficiency Easy to maintain |
|
|
1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of uniformity within the box within ± 2 ℃ 2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution
3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation 4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us |
