Product Details:
|
| Temperature Range: | -50c To +100c | Interior Walls: | Stainless Steel 304 |
|---|---|---|---|
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Dimension (Internal) (W X D X H): | 1500 X 1500 X 3000 Mm | Cooling Rate: | 1 ℃ / Min |
| Brand: | Walk In Test Chamber | ||
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

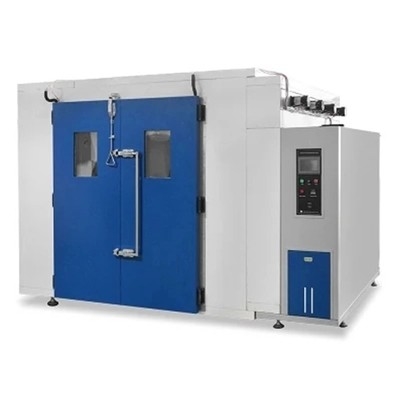

OEM Programmable Climate Temperature And Humidity Test Chamber SUS# 304
Specification:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Programmable temperature humidity test chamber is able to display the relative date and information of the whole operating system in running mode, graphic display. Precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6. Water Supply adopts automatic watering System, Circulating water supply together with water filter.
Features:
1. Realize temperature constant value control and program control;
2. The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3. With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6. Customize size/customize indicators/customize various optional features
| Product Name | Walk in Environmental Chamber Temperature Humidity Test Chamber | |
| Model | Walk-Ins | |
| Internal dimension (mm) | As request | |
| Overall dimension (mm) | As request | |
| Temperature range | A: -20℃ ～+150 ℃
B:-40℃ ～+150 ℃
C:-70℃ ～+150 ℃
|
|
| Humidity range | 20% ~ 98% RH | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Temperature deviation | ± 2.0 ℃ | |
| Humidity deviation | ± 2.5% RH | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Humidity sensor | Dry and wet bulb sensor | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
