Product Details:
|
| Humidity Fluctuation: | ±2.0 %RH | Heat Up Rate: | About 3℃~5℃/min； Can Be Custom |
|---|---|---|---|
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Heating Rate: | 1.0~4.0ºC/min(customizable) | Cooling Rate: | 1 ℃ / Min |
| Brand: | Walk In Test Chamber | ||
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

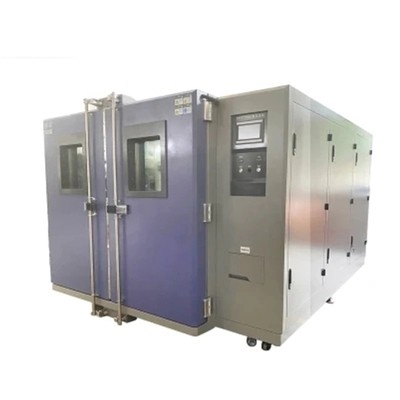

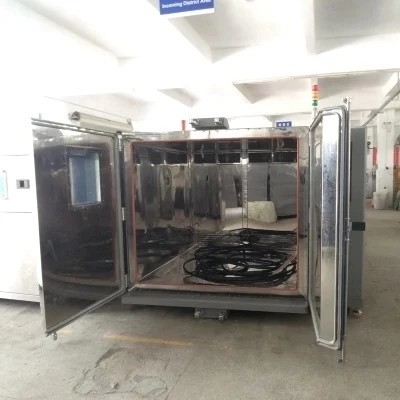

Photo Stability Testing Equipment Walk In Stability Test Chamber OEM
Application:
For all types of electronic products quality inspection , electric appliance, andcommunication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.
Features:
1. High-precision color touch screen controller, which can be switched between Chinese and English.
2. Using the combination of library board units, the internal volume can be arbitrarily enlarged, easy to disassemble and assemble, and can be designed according to the user's needs and can be designed to cooperate with the user's expansion of the factory.
3. The box body is processed and formed by CNC machine tools, with beautiful appearance and non-reaction door handle, which is easy to operate, safe and reliable.
4. International advanced PID+SSR control mode, that is, the temperature is controlled by the stepless automatic adjustment of the PID output to achieve a constant temperature.
5. The equipment adopts automatic water replenishment filter device. No need to manually add water; meet long-term operation without downtime.
6. The internationally popular energy-saving control mode is adopted to automatically adjust the refrigeration power of the compressor, which reduces the energy consumption by 30% compared with the traditional heating balance control.
7. The main accessories of the whole machine are all international famous brands, which improves or guarantees the overall quality of the equipment.
8. It has R232, 485, USB data interface and supports LAN (network port) communication, which is convenient for remote monitoring and data collection.
9. The horizontal diffusion and vertical heat exchange circulation system of centrifugal air supply is adopted to avoid any dead angle and make the indoor temperature and humidity evenly distributed.
Standard:
"GB/T 2423.2-2001 Test B: High temperature test method
GJB 150.3-1986 High temperature test
IEC68-2-2 Test B: Dry Heat. GB 11158 "Technical Conditions for High Temperature Test Chamber"
GB10586-1 "Technical Conditions of Damp Heat Test Chamber"
GB/T 2423.2 "Basic Environmental Test Procedures for Electrical and Electronic Products Test B: High Temperature Test Methods".
GB/T 2423.3 "Basic Environmental Test Procedures for Electrical and Electronic Products Test Ca: Constant Damp Heat Test Method". Etc...
| Product Name | Walk in Environmental Chamber Temperature Humidity Test Chamber | |
| Model | Walk-Ins | |
| Internal dimension (mm) | As request | |
| Overall dimension (mm) | As request | |
| Temperature range | A: -20℃ ～+150 ℃
B:-40℃ ～+150 ℃
C:-70℃ ～+150 ℃
|
|
| Humidity range | 20% ~ 98% RH | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Temperature deviation | ± 2.0 ℃ | |
| Humidity deviation | ± 2.5% RH | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Humidity sensor | Dry and wet bulb sensor | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
