Product Details:
|
| Warranty: | 1 Year | Humidity Fluctuation: | ±3%R.H. |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Humidity Deviation: | ≤3% | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

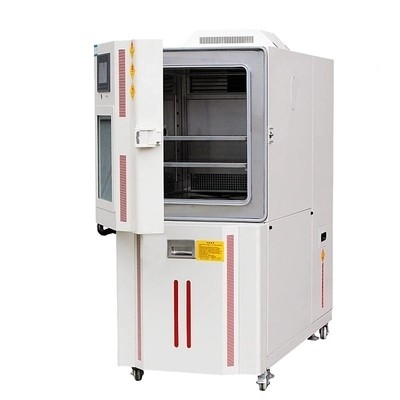

Stability Test OEM Accelerated Aging Chamber High And Low Temperature Humidity
We produce:
It is intended for research and quality control of various materials, products, components, assemblies, structures, mechanisms, measuring instruments, etc. associated with temperature exposure at low temperatures down to -30 ° С and positive up to + 100 ° С and humidity from 10% to 98% at certain temperatures (on request). humidity chamber is a mechanism that examines how products react when exposed to variations in humidity. This type of environmental testing is used by manufacturers to test the various parameters of their products in the harshest of conditions.It is used to simulate special operating conditions in laboratories of radio-electronic, mechanical engineering, food, chemical, pharmaceutical, etc. industries.
The purpose of humidity chambers is to test the influence of varying environments on products to determine the length of their usefulness and at what point they will fail. The collected data assists engineers in adjusting their designs and selecting more resilient materials.
The different varieties of humidity chambers allow testing to be completed in a static or dynamic state depending on the required data and the type of product. Humidity chambers are used as extended testing chambers to determine a specimen‘s reaction to elevated moisture conditions when exposed for weeks or months.
Working Principle:
This is so called Fast Shipping Thermal Shock Test Chamber, Thermal Chamber, Thermal Shock Chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.
Specification:
| Shock Temperature ragne | -65°C~150°C |
| Heating up time | RT~200°C about 35min |
| Cooling down time | RT~-70°C about 90min |
| Temp recover time/ change time | ≤5min / ≤10sec |
| Temp control accuracy/ | ±0.5°C / ±2.0°C |
| distribution accuracy | |
| Inner materials | SUS 304# stainless steel plate for inner chamber,and stainless steel plate |
| + spray painting for external chamber. | |
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. |
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. |
| Cooling systems | Semi-hermetic two-stage compressor (water-cooled) / |
| hermetic two-stage compressor (air-cooled). | |
| Safety devices | Fuse switch, high and low pressure protection switch compressors, |
| refrigerant pressure protection switch failure warning system, electronic siren. | |
| Fitting | Outlook window (special purchase), the upper and lower adjustable |
| compartment two energized measured line hole, casters,level bracket. | |
| Power | 3 phase AC380V 50HZ/60HZ |
| Controller | Tanwan TATO or TH900C |
| Compressor | Germany / Bock Brand |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
- A variety of industrial and laboratory drying ovens;
- Muffle and chamber furnaces;
