Product Details:
|
| Place Of Origin: | DongGuan,China | Certification: | CE SGS ROHS UL CE |
|---|---|---|---|
| Voltages: | Single Phase Or Three Phase 110v-480V | Motor Power: | 0.25KW-3kw |
| Brand Name: | GSKA | Machine Material: | All Stainless Steel 304/316L |
| Machine Diameter: | 400mm-2000mm | Mesh Hole: | 2-500 Mesh |
| High Light: | Vibration Tester,Vibration Test Machine |
||

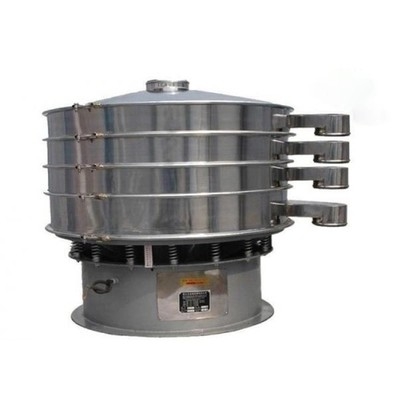

Stainless Steel 304 / 316L Vibrating Screen Machine For Solid Liquid
Product Description:
Rorary vibrating screen also called rotary vibro sifter,vibratory sieve, is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cove. It can filter the liquid like waste water and waster oil etc,remove the impurity in the material,such as milk powder,rice,corn etc. Classify or grade the mixed powder into different size that you requirement.
• Rotary vibrating sieve suitable for screening all of dry material from 0.074mm- 20 mm.
• The screening machine dimension is ranged from diameter 400mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm.
• It supports 5 layers, but 3 layers is highly recommended.
• 4 kinds material are available: all stainless steel 304 or 316 or touching part sus304 or carbon steel Q235A.
• Customized voltage: 220/240/380/415/450V, 50 or 60HZ.
Main Parameters:
| Model | rotary vibrating screen |
| Machine Diameter | 400mm-2000mm |
| Motor Power | 0.25KW-3kw |
| Mesh hole | 2-500 mesh(More than 200 mesh,can use ultrasonic system ) |
| Machine Material | All stainless steel 304/316L,All carbon steel,Contact material part with sus304/316L |
| Layers | 1-6 layer(1-4 layer has best screening effiency) |
| Auxiliary Means | Ultrasonic system/universal wheel /Viewport/ON OR OFF switch/Iron remover/Flange/Valve |
| Applications | Kinds of powder(particle)/Liquid/Solids and liquids |
| Voltages | Single Phase or Three Phase 110v-480V |
Main Features:
1. Attractive and durable, any kinds of powders and mucilage are suitable for using.
2. Unique wire frame design, easy to change and clean.
3. Improved fluidity nonexistence of block and adherence, discharge the impurity and coarse materials automatically.
4. New net frame, long use life of screen, easy to replace the screen.
5. Available for single - and multi-layer screens
.
6. The frame can be adjusted at any 360 degrees, suitable for production line.
Application:
1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
