Product Details:
|
| Movement Way: | Spraying | Flow: | Cross Flow |
|---|---|---|---|
| Temperature Uniformity: | ±2℃ | Atomization: | Gas Atomization |
| Temperature Resolution: | 0.1 | Temperture Range: | RT+10℃～500℃ |
| Authentication Certificate: | CE | Band: | GSKA |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

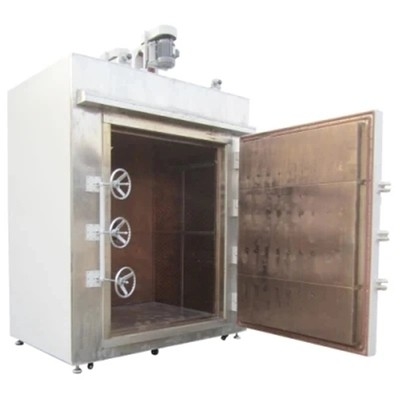

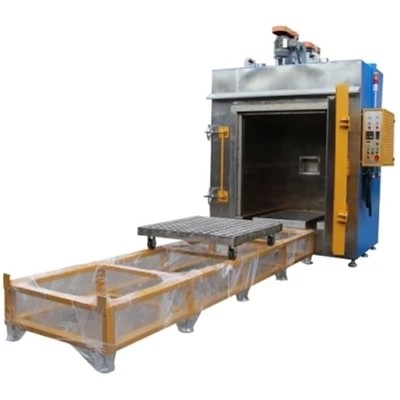

Curing process tooling line powder spray oven/industrial oven OEM
characteristic:
Powder coating is a new coating process developed rapidly in recent decades. The raw material used is plastic powder. In recent years, due to the importance of environmental protection in various countries, powder coating without pollution to water and air, has been developed rapidly.
1, a coating can get a thicker coating, such as coating 100 ~ 300 micron coating, with ordinary solvent coating, about 4 ~ 6 times, and with powder coating can reach the thickness. The coating has good corrosion resistance.
2, powder coating does not contain solvent, no three waste pollution, improve labor health conditions.
3. Adopt new processes such as powder electrostatic spraying, with high efficiency and suitable for automatic assembly line coating; Powder utilization rate is high, can be recycled.
4, in addition to thermosetting epoxy, polyester, acrylic acid, there are a large number of thermoplastic grease resistant powder coatings, such as polyethylene, polypropylene, polystyrene, fluorinated polyether, nylon, polycarbonate and all kinds of fluorinated resins.
Powder coating began to be used for protection and electrical edge. With the development of science and technology, it has been widely used in automobile industry, electrical insulation, corrosion resistant chemical pump, valve, cylinder, pipe, outdoor steel components, steel furniture, casting and other surface coating.
Characteristics of the equipment:
1. Design according to the proportion of human engineering, easy operation, modern appearance.
2. Argon Arc full Welding of all stainless Steel in Inner to prevent dust from the machine itself.
3. Unique air-duct design to ensure the temperature inside is uniformity
4. First-class technology of heat &thermal insulation, sealing effect is excellent.
5. Double over-temperature protection, safer and more reliable.
6. Heating up fast, and the temperature is stable and accurate.
7. The shell temperature is low, which has little effect on the indoor environment temperature.
8. According to the product set up a variety of heating and air mode, energy saving, safety and environmental protection.
9. Module design: Each section manipulation and operation in flexible independently can be available.
10. Colors can be customized base on color card.
Can be customized:
| Industrial Drying Oven | ||||||
|
Inner Size W*H*D (cm) |
External Size W*H*D (cm) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| 45×40×40 | 66×92×55 |
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| 50×60×50 | 70×125×65 | 4.5 | ||||
| 60×90×50 | 80×156×65 | 5.5 | ||||
| 80×100×60 | 100×166×75 | 8 | ||||
| 90×120×60 | 110×186×75 | 10 | ||||
| 140×120×60 | 160×186×75 | 12 | ||||
| 160×140×80 | 180×206×97 | 14 | ||||
| 180×140×100 | 200×200×118 | 16 | ||||
| This model is based on your requirements, including the design. | ||||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
