Product Details:
|
| Testing Temperature Range: | -70℃~+150℃ | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||
220V Multipurpose Thermal Shock Chamber Test Rustproof With Hanging Basket
Two-Box Type Hanging Basket Type For Thermal Shock Test Chamber Temperature And Humidity Testing Equipment
This machine for testing functions of heat endurance, cold-endurance, drought-endurance, wet-endurance suitable for quality control of factories of electronics, electronics, electric appliance, foodstuffs, automobiles, metal, chemicals plywood and Two-box type/hanging basket type for thermal shock test chamber etc.

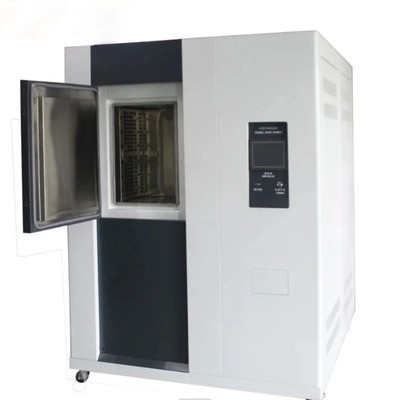

Thermal shock test chambers are used for “temperature shocking” a product under test. Usually a Thermal Shock Chamber consists of two chambers, one hot and another cold, with a test basket (which contains the product being tested) which moves between the two chambers (or zones) – either horizontally for vertically, depending on the configuration of the thermal shock chamber. This equipment is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
Application:
For electrical, electronics and machine parts to cold test, the temperature gradient through rapid changes in conditions or the suitability test. Especially suitable for electrical and electronic products, environmental stress screening options (ESS) test.
Specifications:
| Model | 80L | 150L | 225L | 408L | 800L | 1000L |
| Inside dimension WxHxD (cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*80 | 100*100*100 |
| Outside dimension WxHxD (cm) | 92*140*90 | 105*150*110 | 105*165*120 | 115*175*140 | 160*190*160 | 160*190*160 |
| Temp Range | -70°C ~~ +150°C | |||||
| Humid Range | 20%~98%RH | |||||
| Temp Accuracy | ±0.3°C | |||||
| Humid Accuracy | ±2.5%RH | |||||
| Temp Uniformity | ±1.5°C | |||||
| Humid Uniformity | ±3%RH | |||||
| Heating Up Speed | 3°C/min (average) | |||||
| Heating Down Speed | 1°C/min (average) | |||||
| Interior Material | Stainless Steel Plate (SUS304#) | |||||
| Exterior Material | Stainless Steel Plate (SUS304#) | |||||
| Insulation Material | Rigid polyurethane foam or glass wool | |||||
| Refrigeration System | Hermetic Compressor | |||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, failure warning system | |||||
| Control System | TEMI 880 | |||||
| Accessories | Viewing Windows, Cable Port(dia.50mm), Chamber lamp | |||||
| Power | 3W, AC220V or 5W AC380V | |||||
Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades
More produced:
Temperature Humidity Test Chamber
Walk-in Aging Chamber
Environmental Test Chambers
Thermal Shock Chamber
Fast Temp. Change Test Chamber
Vibration Shaker
Environmental Vibration Chamber
Mechanical Shock Tester
UV Chamber
Xenon Chamber
We offer standard and custom-designed environmental test chambers to meet our customer’s requirements. with our environmental test chambers, you can simulate a diverse range of environmental conditions to test your products. We specialize in providing solutions for extreme temperatures combined with humidity, altitude or vibration.
