Product Details:
|
| Exterior Material: | Painted Steel | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

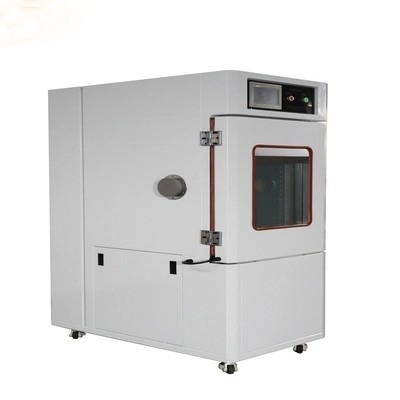

Two Zones Air Type Hot And Cold Impact Test Chamber 220V 50Hz
Thermal shock test chamber is used to test the resistance ability of specimen in extreme high and low temperature cycling environment, which is test the chemical change or physical damage due to heat expansion and cold contraction in short period.
Product Features:
1. The product is beautiful in appearance, reasonable in structure, advanced in technology and exquisite in material selection, with simple and convenient operation performance and reliable equipment performance. The equipment is divided into three parts: high temperature box, low temperature box and test box. It adopts a unique thermal insulation structure and heat storage and cold storage effect. During the test, the object to be tested is completely still, and the cold and hot air are switched to the test area. To achieve the purpose of thermal shock test.
2. The most advanced measuring device is adopted, and the controller adopts a large-scale color LCD human-machine touch interactive LCD human-machine interface controller, which is easy to operate, easy to learn, stable and reliable, and displays the complete system operating status, execution in Chinese and English. and set the program curve.
3. With 96 test specifications independently set, the impact time is 999 hours and 59 minutes, and the cycle period can be set from 1 to 999 times. Time to start and stop work automatically;
4. There is a test hole with a diameter of 50mm on the left side of the box, which can be used for external power load wiring test components.
Features of thermal shock test chamber
| Product Name | Thermal Shock Chamber | |
| Model | GSKA-310A | |
| Optional size range is as follows: (other requirements can be customized) | ||
| Inner Box Volume | Inner Box Size(W*H*D) | Outter Box Size(W*H*D) |
| 50L | 360*350*400 | 1560*1750*1440 |
| 80L | 500*400*400 | 1700*1800*1440 |
| 108L | 600*400*450 | 1800*1800*1440 |
| 150L | 600*500*500 | 1800*1900*1540 |
| 252L | 700*600*600 | 1900*2000*1640 |
| Shock Model | Low temperature and high temperature are automatically changed according to the program, pneumatic damper switch, ventilation type | |
| Supply Power | 380V±10%,50HZ±1Three-wire cross wire + ground wire,
protective grounding resistance <4Ω
|
|
| Total Power | 10KW | |
Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades
