Product Details:
|
External Chamber Material: | Stainless Steel | Temperature Fluctuation: | ±1.0℃ |
---|---|---|---|
Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃;±2.5%RH |
High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |

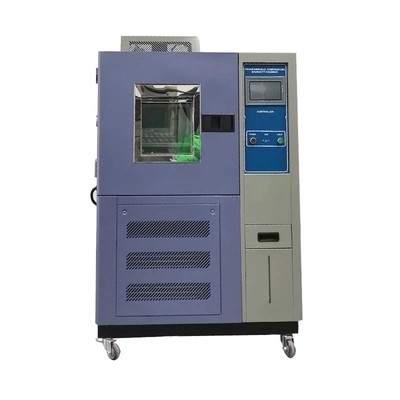

Thermostatic Stability Climatic Test Chamber 50kg Load Stainless Steel SUS304
Applications
Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber have been designed to operate in accordance with reliability programs, quality control, commercial test programs and medical tests. It is used to test the capability of material structure or composite material to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for produce improvement.
Programmable Controller:
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Internal dimension (W*D*H) | 400*500*500mm |
External dimension (W*D*H) | 600*1080*1380mm |
Temperature range | -40~+150℃ |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | 2℃ |
Humidity range | 20~98%RH (Refer Image below) |
Humidity fluctuation | ±2.5%RH |
Humidity uniformity | 3%RH |
Cooling speed | 1℃/min in average (without loading) |
Heating speed | 3℃/min in average (without loading) |
Internal chamber material | mirror finished |
External chamber material | Stainless steel |
Cooling method | Air cooling |
Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
Insulation material | 50mm high density rigid Polyurethane foam |
Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
Compressor | France Tecumseh compressor |
Lighting | Heat resistance |
Temperature sensor | PT-100 dry and wet bulb sensor |
Observation window | Tempered glass |
Testing hole | Diameter 50mm, for cable routing |
Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
Test Area & Shelf
● Interior of Chamber is SUS304 stainless steel.
● A stainless steel shelf for placing test specimens
● Standard load of shelf is 50kg
● Normal wire diameter is 50 um.
● Normal width of a gap between wires is 75um.
● Built-in power interface for test specimen
● Test chamber internal illumination
● Vacuum system for specimen
we are manufacturer of Thermal Chamber Price,Constant Temperature Chamber,Small Temperature Chamber. Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
