Product Details:
|
| Customized Support: | OEM | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | KeywordZ: | Climatic Test Chamber |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

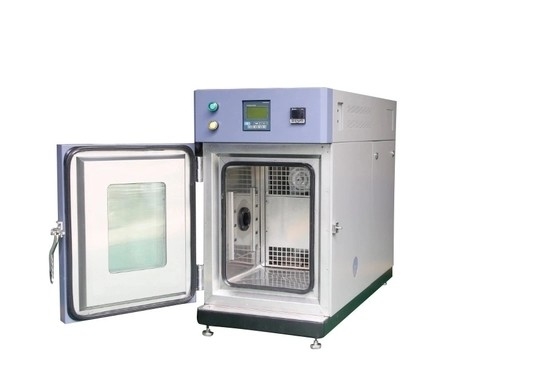

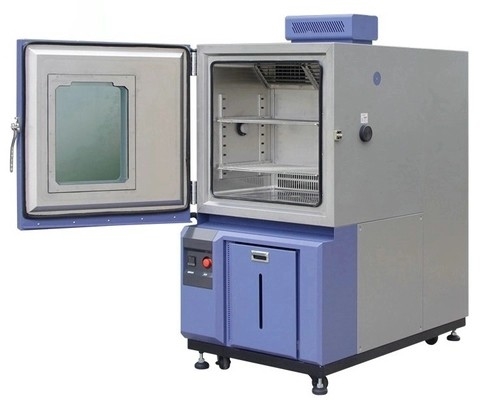

Anticorrosive PLC Thermal Humidity Chamber , OEM Accelerated Stability Chamber
Features:
1. Perfect shape design: arc shape and surface spray treatment, high-quality appearance, and flat non-reaction handle, easy to operate, safe and reliable.
2. Large observation window with bright and wide field of vision: using three-layer vacuum coating window and Philips energy-saving fluorescent lamp, no need for wipers to remove fog, maintain a clear observation effect, and can observe the condition of the test product at any time.
3. The humidification system pipeline is separated from the control circuit: the humidification system pipeline is separated from the power supply, the controller and the circuit board, which can avoid the circuit being affected by the leakage of the pipeline and improve the safety.
4. Advanced and reliable refrigeration and control system: Original imported European and American fully enclosed compressors, imported environmentally friendly refrigerants, world-renowned brand refrigeration devices, imported LCD touch screen controller, friendly interface, easy to operate.
The main function of an environmental chamber is to test the behaviour of the products we use every day, in extreme climatic conditions. The following applications are examples of how a climatic chamber may be used…
1. Testing of the influence of temperature and humidity on the properties of textiles, building materials, plastics, composites, adhesives, metals, electronic components, etc.
2. Storage of building material test specimens
3. Incubation of fungal spores on plants under humidity
Detailed Parameters:
| Inside size WxHxD (cm) | 40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x80 | 100x100x100 |
| Outside size WxHxD (cm) | 100x170x87 | 105x175x97 | 115x190x97 | 135x195x115 | 145x185x137 | 145x210x130 | 147x210x140 |
| Temperature range | -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) | ||||||
| Accuracy/ uniformly | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||||
| Accuracy / volatility | ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||||
| Heating / cooling time | About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||||
| Inside material | Stainless steel SUS 304# | ||||||
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃) | ||||||
| protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system | ||||||
| accessories | recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball | ||||||
| controller | TEMI300 digital controller from South Korea | ||||||
| compressor | France Tecumceh | ||||||
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
Chamber Design Features:
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
Programmable Controller:
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
