Product Details:
|
Test Time Continuous: | 1-9999(S,M,H)adjustable | Temperature Fluctuation: | ±1.0℃ |
---|---|---|---|
Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃;±2.5%RH |
High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
Constant temperature test box, also known as "constant temperature and humidity test box", is a necessary test equipment in aviation, automobile, home appliances, scientific research and other fields. Parameters and performance after the test temperature environment changes.
The constant temperature test box is a stress screening equipment and test equipment developed to meet the needs of modern industrial production, and is also used in the pilot test process. Its working principle is based on the combination of thermal principle and refrigeration principle. It is heated by a heater and cooled by a refrigeration device to achieve a certain constant temperature. When the product is in such an environment, observe the changes in its performance and appearance, and provide enterprises with more scientific and reliable products.

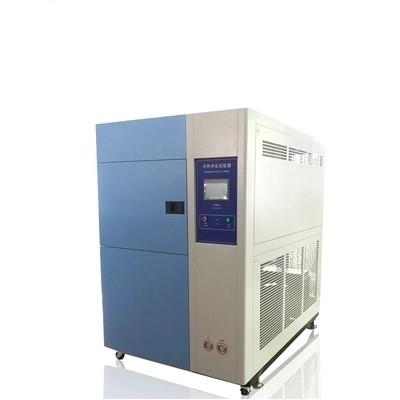

Product Name | Climatic Test Chamber |
Inner box size W*H*D(cm) | 50*75*60 |
Carton size W*H*D(cm) | 107*161*117 / customized |
Inner box volume | 225L |
Temperature and humidity control range | A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D: -70℃~150℃ (Special temperature and humidity specifications can be customized) |
Temperature and humidity fluctuation | ±0.5℃;±2.5%RH |
Temperature and humidity deviation | ±0.5℃-±2℃;±3%RH(>75%RH); ±5%RH(≤75%RH) |
Controller resolution | ±0.3℃;±2.5%RH |
Controller Brand | Programmable Korea TEMI880 touch screen controller |
Inner wall | SUS304#steel plate |
Outer wall | SUS304#steel plate mist treatment |
Thermal insulation material | High temperature resistant high density ethyl chloroformate foam insulating material |
System air circulation mode | Centrifugal fan-broadband forced air circulation |
Cooling mode | Single stage mechanical compression system |
Refrigerating machine | Fully enclosed piston French Taikang compressor |
Refrigerant | R404A or American DuPont environmental refrigerant (R23+R404) |
Condensation method | Air-cooled |
Heater | Ni-Cr wire heater |
Humidifier | Semi-closed steam humidification |
Water supply mode | Automatic circulating water supply |
Safety device | No fuse switch,( compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse failure warning system) |
Power | 220V AC±10% 50HZ |
Environmental testing:
Companies in all industries—but especially those that produce electronics, medical devices, automobiles, and anything that operates with a lithium-ion battery—put their products and components that make up those products through rigorous environmental tests. These diagnostics simulate conditions to identify weaknesses in designs and set expectations (hence those warranties) for customers.
This is completed with the use of environmental test chambers. Here’s everything you need to know about test chambers: the different types of models, how they work, use cases, and more.
Product Usage:
This series of products is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components to test their performance indicators in high and low temperature or humid and hot environments.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
