Product Details:
|
| Power Supply: | 220V 50Hz / 380V 60hZ | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Screen Size &Display: | 7" TFT-LCD | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

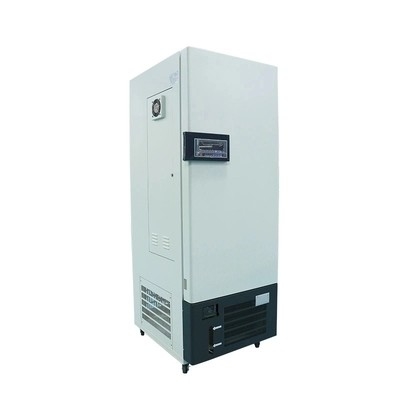

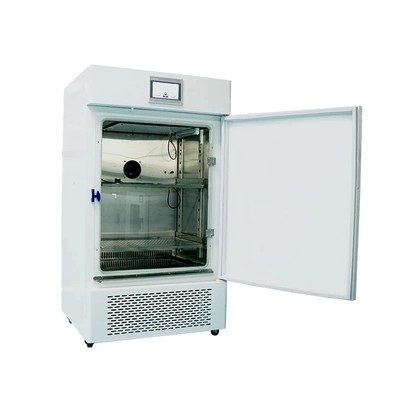

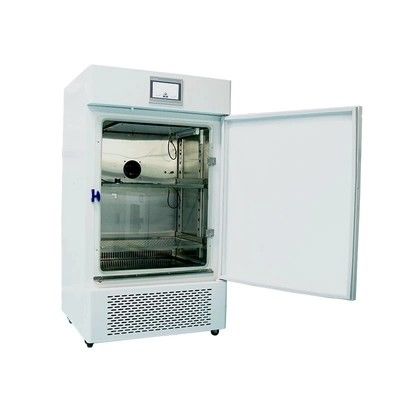

OEM Programmable Temperature Humidity Chamber 380V 60Hz With LCD
Product Usage:
This series of products is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components to test their performance indicators in high and low temperature or humid and hot environments.
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Humidity is probably one of the most misunderstood topics when it comes to environmental test chambers. This is due to the fact that Relative Humidity percentage is temperature specific. For example, the amount of moisture in the air at 20˚C (68°F) and 50% RH is not the same as 10˚C (50°F) and 50% RH. As the temperature of air is reduced its ability to hold moisture is also reduced. Thus, for a given amount of water vapor in the air - the lower the temperature, the higher the RH.
The constant temperature test box is a stress screening equipment and test equipment developed to meet the needs of modern industrial production, and is also used in the pilot test process. Its working principle is based on the combination of thermal principle and refrigeration principle. It is heated by a heater and cooled by a refrigeration device to achieve a constant temperature. When the product is in such an environment, observe the changes in its performance and appearance, and provide enterprises with more scientific and reliable products.
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | |
|
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
Main features:
1, perfect design: circular shape and surface spray, high-texture appearance, and no reaction with flat handle, easy, safe and reliable.
2, bright, broad vision of the large observation window: The three vacuum coating windows and Philips energy-saving fluorescent lamps, without wipers defogging keep clear observation results can always observe the condition of the test sample.
3, humidification system piping and control circuit separation: humidification system piping and power supply, controller, circuit board separation, avoid the affected pipeline leakage circuit to improve safety.
4, advanced and reliable refrigeration and control systems: closed compressor imported from Europe, imported environmentally friendly refrigerant, a world-renowned brand refrigeration device, imported LCD touch screen controller, friendly interface, easy to learn
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
