Product Details:
|
| Uniformity: | ±2°C;±3.0%RH | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

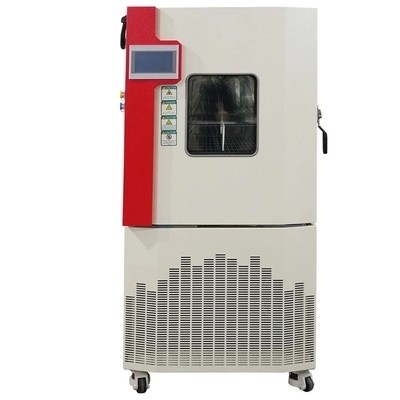

SS304 Temperature Humidity Controlled Cabinets Antiwear Climatic Test Chamber
Product description:
This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.
Control:
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
Technical Specification:
| Parameter | Temp. range | Model S:-70°C~+150°C ,Model L: -40°C~+150°C | ||
| Humidity Range | 20% ~ 98% R.H | |||
| Humidity bias | +2~-3%R.H | |||
| Temp. fluctuation | ≤±0.5°C | |||
| Temp. uniformity | ≤2°C | |||
| Heating rate | 1.0~3.0°C/min | |||
| Cooling rate | 1~1.5°C/min | |||
| Material | Shell material | High-quality SUS304 stainless steel plate | ||
| Liner material | High-quality SUS304 stainless steel plate | |||
| Insulation materials | Ultra-fine glass fiber insulation cotton / rigid polyurethane foam | |||
| Door seal | Double resistance to high and low temperature aging and hardening of refined silicone seal | |||
| Cold and heat exchange system | Controller | JIANQIAO Special color touch screen Controller | ||
| Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C | ||||
| Circulatory system | Temperature low-noise motors, cycles, , stainless steel multi-leaf type centrifugal fan,the test time can set 999999 hours | |||
| Water supply | Electronic device controller automatic control of liquid, and more than recycled water, with water alarm | |||
| Humidification mode | External isolated, stainless steel electric steam humidification mode occurs | |||
| Dehumidification mode | Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts | |||
| Refrigeration | Unit cooling mode / Dual (cascade) cooling method (air-cooled) | |||
| Condenser/ Evaporator | Tecumseh | |||
| Compressor | France " Tecumseh " closed refrigeration compressor / France "Taikang" Hermetic Refrigeration Compressors | |||
| Security Devices | Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection | |||
| Standard |
Resistant to high and low temperature heat tempered glass hollow glass windows: 300 × 200 (mm), a lighting, , the two sample holder, |
|||
| Power supply | ACø220V·50HZ/380V·50HZ | |||
| Ambient temperature | 15°C~+30°C ≤85%R.H | |||
Standard Features:
1. Stainless# 304 steel for interior
2. Paint steel for exterior
3. Foam-insulated door for rigidity and long life
4. Plastic water tank easy for maintenance
5. Observation Window with frost free function
6. High performance refrigeration system
7. Easy user interface for TEMI-880 PLC controller
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
