Product Details:
|
| Heating Rate: | 2~3℃/min (no Load) | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

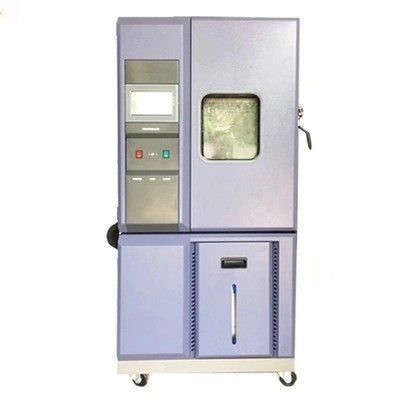

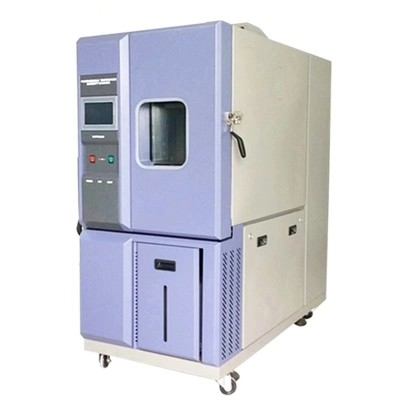

ROHS dustproof Temperature And Humidity Controlled Chambers 3 phase power
Optional Accessories:
1. Low humi. Dehumidifying system
2. Inner glass door with manual operating ports
3. Temp./ humi. Recorder
4. Pure water treatment device
5. Reverse osmosis water purifier
6. RS-485 interface can be linked to PC and achieve multi-level control and recording software management.
7. LN2 / LCO2 fast cooling-down system
Overview:
High low temperature test chamber is mainly for the adaptability test of automobile, marine electrical, electronic products, raw devices, and other materials when stored, transported and used in low temperature environment.
According to the national standards or user requirements, under low temperature conditions, conduct environmental simulation tests on the physical and other related characteristics of the product, to judge whether the performance of the product meets the predetermined requirements, so that it can be used for product design, improvement, identification and factory inspection.
| Temperature Range | 0℃~150℃ |
| Humidity range | 20% R.H~98%R.H |
| Fluctuation/Uniformity | ±0.5℃/±2℃ |
| Heating rate | 1℃/min~3℃/min |
| Cooling rate | 0.7℃/min~1℃/min |
| Accuracy range | Setting accuracy: temperature 0.1℃, humidity 1% R.H, indication accuracy: temperature 0.1℃, humidity 1% R.H |
| Sensors | Platinum resistance. PT100Ω/MV |
| Humidification system | External isolation type, all stainless steel shallow surface evaporative humidifier |
| Dehumidification system | Using evaporator coil dew point temperature laminar flow contact dehumidification method |
| Water supply system | Humidification water supply is automatically controlled. And can recycle the remaining water. Save water and reduce consumption |
| Circulation System | Temperature-resistant and low-noise air-conditioning type motor. Multi-lobe centrifugal wind turbine |
| Standard configuration | 1 set of illuminated glass window, 2 specimen holders, 1 test lead hole (25, 50, 100mm) |
| Security Protection | Leakage, short circuit, over temperature, water shortage, motor overheating, compressor over pressure, overload, over current protection/controller power failure memory |
| Voltage | AC110V/AV220V/AC380V/415V±10% 50±0.5Hz Three-phase five-wire system |
| Usage Environment temp | 5℃~+30℃≤85%R.H |
Application :
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
