Product Details:
|
| Insulation Material: | Superfine Wool + Polyurethane Foam | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

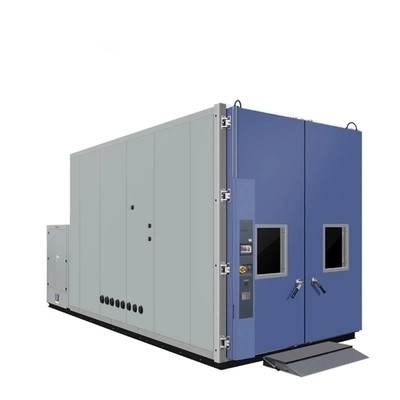

PLC Temperature Testing Equipment , Anti Explosive Humidity Control Chamber
Chamber Summary:
Easy To Operating Performance of climate temperature humidity test chamber for electronics, plastic products, electrical appliances, instruments, metals, chemicals, building materials, food, vehicles, aerospace, medical ... Products of quality.
Easy To Operating Temperature Humidity Chamber specially test various materials resistance to heat, cold, dry, wet performance
Working principle:
Easy To Operating Temperature Humidity Chamber (heating and cooling) and humidification is composed of two parts. Through installation in box within top Department of rotating fan, will air row into box achieved gas cycle, and balance box within of temperature, and humidity, by box built-in of temperature, and humidity sensor collection of data, biography to temperature, and humidity controller (micro information processing device) for edit processing, issued thermostat adjustable wet instruction, through air heating unit, and condensation tube and sink within heating evaporation unit of common completed.
Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
Main Specifications:
| Capacity(L) | 80, 150, 225, 408, 500, 800, 1000L(optional, or custom-made) | |
| Performance | Control Methods | Balanced temperature humidity control system (BTHC) PID intelligent adjust |
| Temperature and Humidity Range | -70°C~150°C; 20%-98%R.H | |
| Accuracy | ±1.0°C, ±2%RH / ±0.5°C, ±2%RH | |
| Resolution | ±0.1°C, ±0.1%RH / ±1°C, ±3%RH | |
| Heating Rate | ≤3°C/min | |
| Cooling Rate | Average 1°C/min | |
| Internal Material | SUS#304 stainless steel | |
| External Material | SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray) | |
| Insulation Material | Superfine wool + polyurethane foam | |
| Regulator | Cooling Mode | Mechanical binary refrigeration way |
| Compressor | Closed compressor (French Tecumseh or German Copeland ) | |
| Refrigerant | R23/R404A | |
| Condensing Way | Air-cooling and Water-cooling | |
| Humidifier | Stainless steel humidifying tube | |
| Airflow Way | Broadband-type forced air circulation | |
| Controller | Operate Interfaces | Korea TEMI 880 LCD touch screen |
| Memory capacity | 120 groups, each program 100 segment | |
| Input | PT100 or T thermocouple | |
| Communicate Interface | RS-232 | |
| Subsidiary function | Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off ) | |
| Water supply | Water supply | Circulating water supply |
| Water tank | Built-in hand type(30Kg capacity) | |
| Water quality | resistance >500Ω.m | |
| Standard Configuration | One observe window(Double hollow toughened glass); one test pattern D50mm(on the left); 2 layers sample frame; one floodlight(fluorescent lamp); one water feeding tank; | |
| Safety device | Power leakage protection; Dry heating protection; Water protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc. | |
| Power supply | 220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz | |
Protection:
1. Fault alarming, showing the reason of fault and how to solve the problem
2. Power failure protection function
3. Upper and lower temperature protection function
4. Calendar timing function (automatic start and automatic stop operation)
5. Self-diagnosis function
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
