Product Details:
|
| Place Of Origin: | Guangdong,China | Heating Rate: | RT~150°C (Linear 5°C/Min) |
|---|---|---|---|
| Test Time: | Hold The Value For 6 H | Test Space: | 300x300x300mm |
| Demension: | 600x650x1340mm | Power: | Electronic, 380V,50/6Hz,10A |
| Simulate Altitude: | 15420m | Brand Name: | GSKA |
| High Light: | Thermal Test Chamber,Environmental Test Chamber |
||

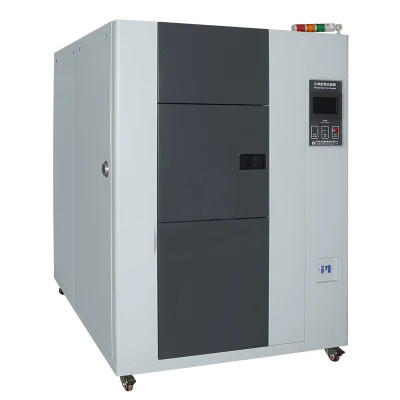

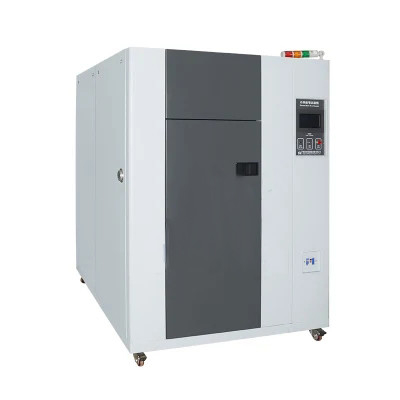

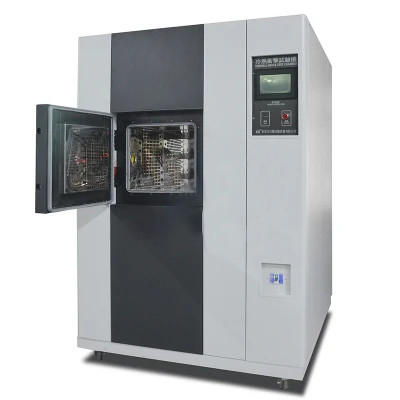

Battery Performance Test Thermal Test Chamber Heating Rate RT~150°C (Linear 5°C/Min)
product presentation:
The battery thermal test chamber is a device specially used to test the thermal stability and thermal safety of batteries. It can simulate various ambient temperatures and temperature changes, and accelerate the test of battery performance and stability in high temperature, low temperature, rapid warming, rapid cooling and other conditions. At the same time, the battery thermal test chamber can also be used for temperature cycle, gradual change, humidity and heat, etc., in order to comprehensively evaluate the performance and safety of the battery in different environments, so as to provide reliable data support for product design and quality control.
Performance parameters
| Model | GSA-ZN52 | GSA-ZN52 | GSA-ZN52 | GSA-ZN52 |
|---|---|---|---|---|
| Test Space | 500x600x500 | 500x750x600 | 600x850x800 | 1000x1000x800 |
| W x H x D (mm) | ||||
| External Dimension | 700x1700x1370 | 700x1750x1420 | 650x1650x1270 | 1200x1900x1620 |
| W x H x D (mm) | ||||
| Temperature Range | -70~150ºC | |||
| Temperature Fluctuation | ±0.5ºC | |||
| Temperature Deviation | ≤2.0ºC | |||
| Temperature Uniformity | ≤±2.0ºC | |||
| Heating Rate | RT~150°C (Linear 5°C/Min) | |||
| Cooling Rate | From 80ºCto -40ºC ,full range non-linear average about5ºC/min(10ºC/min or15ºC/min can be customized),no load | |||
| Temperature Overshoot | ≤±2ºC | |||
| Internal Material | 1.2mm thick SUS#304 high &low temperature resistance stainless steel. | |||
| External Material | Adopt flame retardant high strength PU Polyurethane foam insulation material. | |||
| Control Method | Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning. | |||
| Compressor | Tecumseh (France)-fully air-cooled double-fall cooling compressor. Or Bock (Germany) semi-enclosed air-cooled refrigeration. | |||
| Safety Protection | Explosion-proof pressure relief device, explosion-proof chain, mobile phone alarm device, networking, smoke exhaust device, fire extinguishing device, etc. | |||
FAQ
Q 1: Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
Q 2: What are your Price Terms and depart port?
A : Trade term: FOB, CFR, or CIF, etc. Shipping port: Shanghai normally.
Q 3: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q4: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q 5: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q 6: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q 7: What shall we do if breakdown occurs?
A: Please informed us at once. We shall handle it by the on-line services to make one-one explanation or arrange the personnel to the site see as
the requirements.
Q8: Do you support overseas installtion and debugging?
A: Yes, normally we will despatch a profesional team with translater to the field to complete the whole project.
