Product Details:
|
| Temperature Range: | -40~150 Deg C | Cooling Rate: | 0.7c~1.0c/Min (Average) |
|---|---|---|---|
| Usage: | Stability Testing | Packaging Details: | Strong Wooden Case Package |
| Distribution Uniformity: | ±2Deg C | Control Accuracy: | ±0.5Deg C |
| Authentication Certificate: | CE | Model: | Environmental Walk In Test Room |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

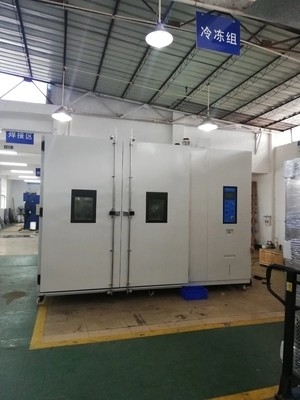

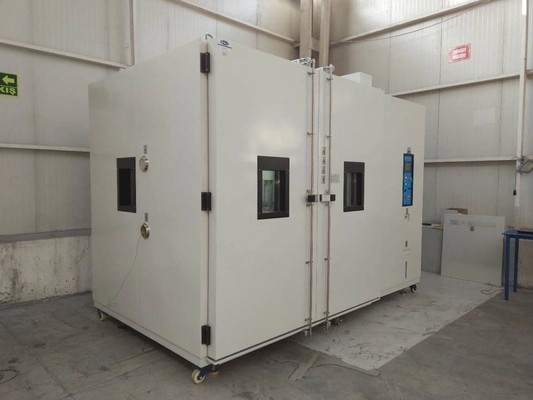

Laboratory Environmental Walk In Chamber Humidity: 20%~98%R.H
Equipment structure:
Outer box material: high quality carbon steel plate. Phosphating electrostatic spray treatment
Inner box material: SUS304 stainless steel high quality light plate
Insulation material: polyurethane hard foaming
The door seal is made of double silicone rubber sealing material.
The observation window is made of multi-layer toughened insulating glass with conductive film. In order to prevent glass frosting at low temperature, it is surrounded by built-in special heating wire and equipped with lighting lamp to provide illumination for observation.
Control system: imported programmable touch type LCD Chinese dialogue display, microcomputer integrated controller
To protect the system:
Overall equipment over temperature/under phase/reverse phase/timing
Refrigeration system overload/overpressure
Other protection includes leakage, water shortage, operation indication, automatic shutdown after fault alarm, etc.
Heating humidifying:
The heater adopts porcelain frame nickel chromium wire electric heater, which has little thermal inertia and long life.
By the instrument output controllable pulse duty cycle PID signal, through solid state relay to control, the control is stable and reliable.Laboratory Environmental Walk In Chamber Humidity: 20%~98%R.H
Technical Parameters:
| Model | low-temperature options : A ~ F |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 80℃ (80℃ ~150℃ is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
| Indication Resolution/Distribution Uniformity of Temperature & Humidity |
0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity |
±0.5℃; ±2.5% R.H. |
| Temperature Rising/Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V(±10%),50/60HZ ,3∮ 5 Line |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
If you have any question about our walk in temperature chamber Laboratory Environmental Walk In Test Room Accelerated Aging Climate Chamber,pls contact with us . thank you .
