Product Details:
|
| Model Number: | GSA-M107 | Warranty: | 12 Months |
|---|---|---|---|
| Certification: | CE SGS ROHS UL | Frequency Range: | 0.01~3000HZ |
| Maximum Acceleration: | 100g(custom-made) | Maximum Displacement: | 50mm(p-p) |
| Maximum Rust Force: | 300kg(custom-made) | Vibration Direction: | Single Direction Vertical |
| High Light: | Vibration Tester,Electrodynamic Shaker |
||

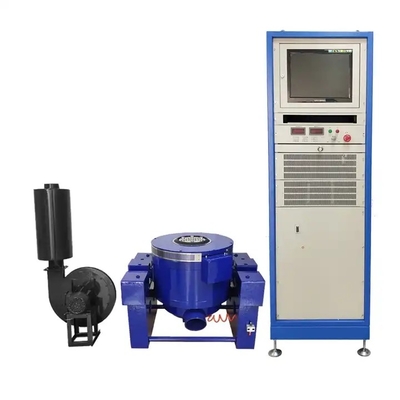

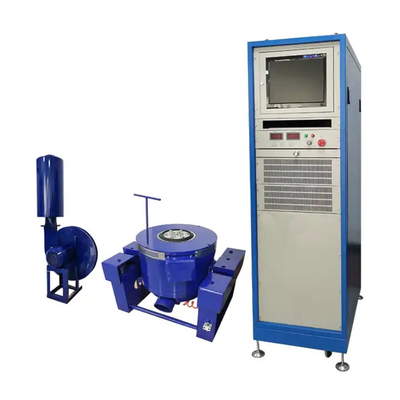

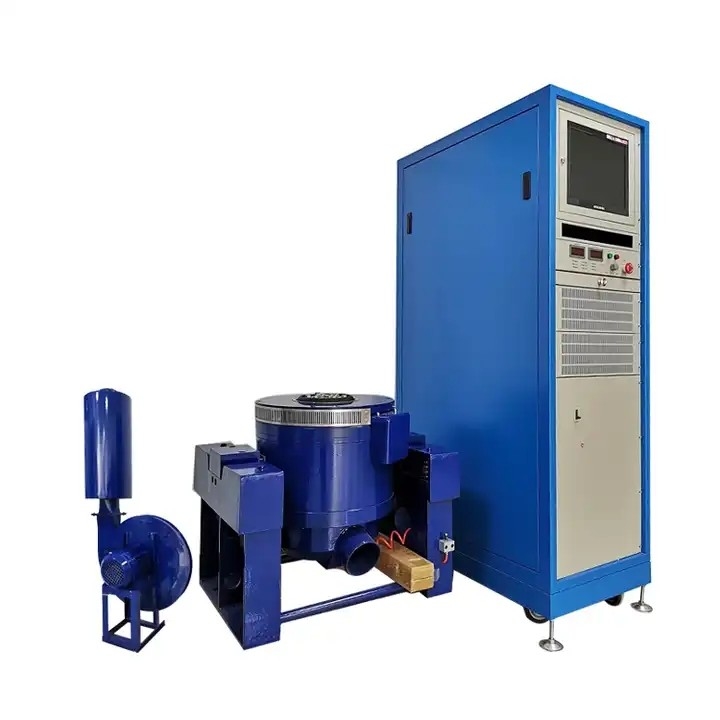

The Frequency Range Of Three-Axis Electrodynamic Shaker Is 0.01~3000HZ
product presentation:
Electromotive vibration test-bench is the principle of alternating excitation force generated by the interaction between the constant magnetic field and the coil with a certain alternating current in the magnetic field.The shaking table adopts advanced mechanism and advanced technology,The main features are: the magnetic circuit adopts double magnetic field structure, the moving coil adopts frameless winding, and the moving coil support system adopts cantilever support and air spring support,The power amplifier adopts advanced switch amplifying circuit, the system has complete protection functions, and adopts intelligent automatic protection control. The cooling form is forced air cooling.The system has advanced technical indexes, stable and reliable working performance, and can fully meet the requirements of artificial assessment of vibration environment in transportation and use environment for products from aerospace, aviation, instruments, meters, automobiles, motorcycles and other industries under laboratory conditions.
Product details
| Design Standard | EN71 ANSI, ASTM, ISTA |
| Speed | 100-300RPM |
| Speed display | 0.1RPM |
| Vibration method | reciprocation type |
| Vibration amplitude | 1 inch(25.4mm) +15% |
| Max load | 100 KG |
| Effective test area | 100*90cm |
| Time setting range | 0 to 100 hour |
| Dimention | 110*110*70 cm |
| Product Keywords | electrodynamic shaker for mobile phone vibration test performed ista iec standard |
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
