Product Details:
|
Place Of Origin: | Guangdong, China | Model Number: | GSA-405Z |
---|---|---|---|
Warranty: | 1 Year | Table Size(mm): | 7010*800mm |
Half Sine Max. Acceleration(G): | 600g | Power Supply: | 380V 50Hz |
Power: | Electronic | Max. Specimen Weight(kg): | 30kg |
High Light: | Vibration Tester,Electrodynamic Shaker |

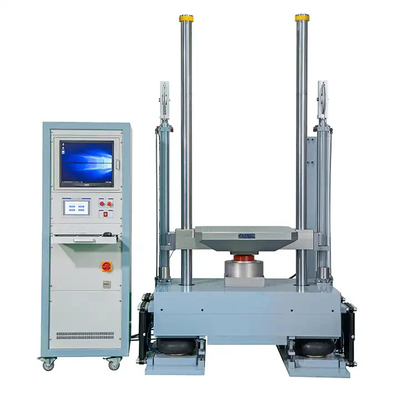

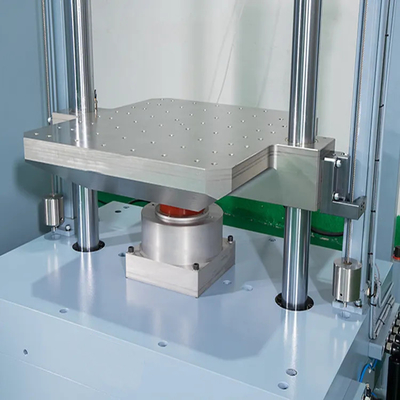

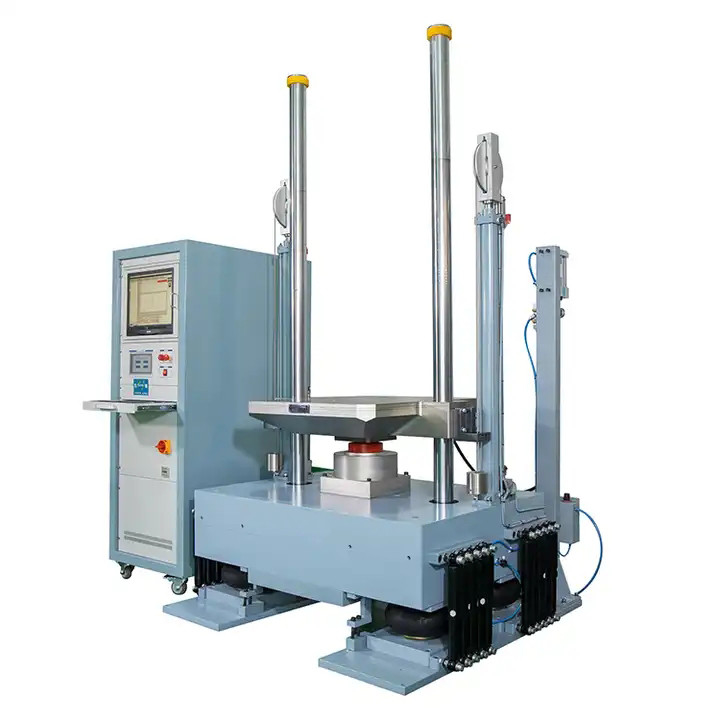

Mechanical Impact Vibration Testing Machine Used For Simulate Impact Environment
product presentation:
Mechanical Shock Test Systems
Products are inevitably affected by impact, bump, free fall, tumbling, etc during production, transportation , loading and unloading as well as during the use of the products. All of these are transient excitation in the object, causing the object to produce mechanical characteristics of high speed, acceleration, strain rate. It is completely different from objects in static load which cause problem to the object in terms of structural strength and stability and sometimes the object may fail. Therefore, it is necessary to study the effect of impact and reproduce the shock environment, to assess the strength and performance of the object under shock environment.
The Application of Shock Test
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. Regardless whether you want to do a boundary assessment on complete product breakage. Industrial shock piles or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.
Suitable shock test for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.
By selecting different waveform generator, can perform: half sinusoidal wave, trapezoidal wave.
Features
Convenient touch screen operation;
Complete safety protection system;
Utilize pneumohydraulic booster and braking system to prevent multiple impact;
With air spring shock absorber and hydraulic shock damping mechanism, there will be on influence of impact on surrounding and no foundation requirement.
Technical Parameters:
Model | GSA-405Z | GSA-406Z | GSA-407Z | GSA-408Z | GSA-409Z | GSA-410Z | GSA-411Z | |
Table Size(cm) | 40×40 | 50×60 | 701×80 | 100×100 | 120×120 | 150×150 | 200×200 | |
Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
Max. Acceleration(G) | Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
Square | - | 150 | 150 | 150 | 100 | 100 | 100 | |
Pulse duration(ms) | Half Sine | 30~0.5 | 30~1 | 30~1 | 30~2 | 20~3 | 20~3 | 20~3 |
Saw-tooth | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
Square | - | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | |
Machine dimension(cm) |
120×105× 245 |
120×105× 245 |
130×120× 260 |
150×130× 260 |
200×160× 300 |
230×180× 310 |
250×250×3 10 |
|
Controller cabinet dimension | W55×D50×H80 | |||||||
Machine weight(Kg) | 1900 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
Power supply | 3 Phase AC380V 50/60Hz Compressed air 0.5~0.8MPa | |||||||
Standards | GB/T2423-2008 GJB1217GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
1.Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand, Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
