Product Details:
|
| Ultimate Vacuum (Pa): | 4x10-1 | Pressure Rising Rate(Pa/h): | 0.5 |
|---|---|---|---|
| Installed Furnace Capacity( KG): | 500 | Gas Cooling Pressure (bar): | 6-10 |
| Temperature Uniformity (℃): | ±5 | Maximum Temperature (℃): | 1250 |
| Valid Zone（mm）: | 900x700x600 | Size: | Customization |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

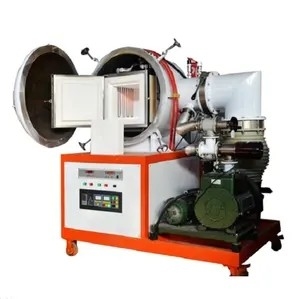

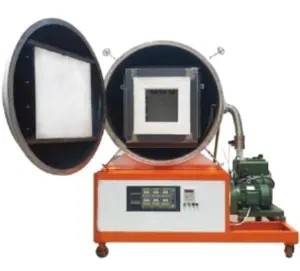

Low Pressure Vacuum Carburizing Furnace For Gas Quenching And Annealing
characteristic:
The vacuum degree can reach 10Pa (two-stage rotary vane vacuum pump)
Designed with air inlet and exhaust port, can be used for vacuum, can also be filled with inert gas use
Helium mass spectrometer leak detector vacuum pickup, to ensure that the vacuum leakage rate is less than 0.67Pa/h
Using alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating, while ensuring excellent use effect, greatly reduce the cost of electric furnace
Upper limit alarm, deviation alarm, automatic stop at the end of the program, no person on duty
Maximum temperature 1200℃ or 1700℃ is optional
Pneumatic vacuum valve, easy to operate
Double layer water cooling, shell surface temperature s50℃
High strength carbon steel, external electrostatic spray, beautiful and generous
50 section programmable temperature control instrument table PID adjustment
|
Double-chamber Vacuum Oil Quenching Gas Cooling Furnace
|
|||||||
|
Model
|
Valid zone(mm)
|
Maximum temperature (℃)
|
Temperature uniformity (℃)
|
Ultimate vacuum (Pa)
|
Pressure rising rate(Pa/h)
|
Installed furnace capacity( KG)
|
Gas cooling pressure (bar)
|
|
GA100ST
|
700x500x500
|
1250
|
±5
|
4x10-1
|
0.5
|
250
|
2
|
|
GA150ST
|
900x700x600
|
1250
|
±5
|
4x10-1
|
0.5
|
500
|
2
|
|
GA100ST
|
700x500x500
|
1250
|
±5
|
4x10-1
|
0.5
|
250
|
6-10
|
|
GA150ST
|
900x700x600
|
1250
|
±5
|
4x10-1
|
0.5
|
500
|
6-10
|
|
GA220ST
|
1200x800x700
|
1250
|
±5
|
4x10-1
|
0.5
|
800
|
6-10
|
|
ZY(Q/2-ST double chamber vacuum carburizing furnace is a double chamber oil quenching(gas quenching) vacuum furnace with the low pressure carburizing function, which is mainly used for vacuum hardening of tool steel, die steel, bearing steel. spring steel and other materials. For vacuum carburizing and hardening heat treatment cf 2DCrMnTi.20# steel and other low-carton alloy steel parts.
Control method: IPC system, the hardening and carburizing process is completed automatically(manually).
Process medium:carburizing uses acetylene, proliferation uses high-purity nitrogen.
|
|||||||
|
Selectively: can select dual-chamber gas quenching,double chamber oil quenching or three chamber oil gas quenching and other three quenching methods; the acetylene vacuum carburizing can also be added with nitriding, carbonitriding function.
|
|||||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
