Product Details:
|
| Warranty: | 1 Year | Customized Support: | OEM |
|---|---|---|---|
| Max Temperature(℃): | 1700 Degrees | Voltage: | AC 208-240V Single Phase, 50/60 Hz |
| Heating Rate: | ≤20 ℃ /min | Working Temperature: | 1600C(Continuous) |
| Certification: | CE | Temperature Control: | 51segments Programmable |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

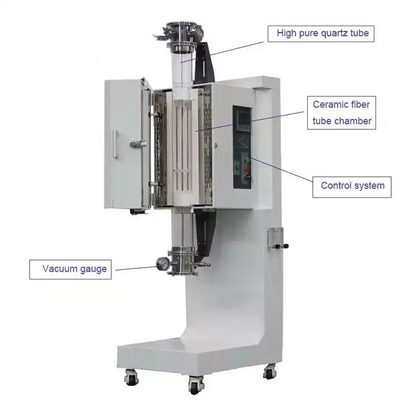

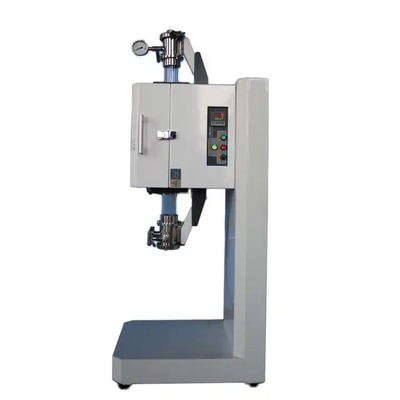

1600℃ Vertical Tube Furnace Is Used For Heat Treatment Of Semiconductor Materials
product presentation:
The advantages of vertical tube furnace are many. The unique design can meet the rapid rising and cooling of samples in vacuum or atmosphere environment. Seeing the state of heating and uniform heating on all sides can make gas emission more smooth. When the furnace body is installed vertically, the support can be moved. This design is mainly for the heating uniformity of the furnace tube temperature. You can pump out a vacuum in advance, and it contains a lot of gas.
Feature:
1.Double layer steel casing with air cooling to keep furnace surface temperature lower than 60°C, much safer.
2.High purity fibrous alumina insulation for Max. energy saving.
3.Special refractory coating on inner and heating element to increase furnace life.
4.PID temperature controller to meet full automatic constant temperature function
5.Fast heat-up to reduce energy consumption
6.Over temperature protection and over-load protection
7.Easy to install and operate
|
Specification
|
||||
|
Furnace Structure
|
Double layer steel structure with air cooling. Built in thermostat to control Cooling fans running when case temperature > 55ºC
High purity fibrous alumina insulation for energy saving |
|||
|
Voltage
|
AC 208-240V Single Phase, 50/60 Hz
|
|||
|
Standard Working Temperature
|
1600°C (continuous)
|
|||
|
Maximum Working Temperature
|
1700°C (Peak at < 60 minutes)
|
|||
|
Heating Rate
|
≤ 20 ºC/min
|
|||
|
Temperature Accuracy
|
+/- 1 °C
|
|||
|
Tube Size and Materials
|
OD:80 mm; ID: 72 mm; Length: 1500mm, one 80mm Quartz tube (included)
|
|||
|
Temperature controller
|
PID automatic control via current limiting phase angle fired the resistor with 51 steps programmable
|
|||
|
Vacuum Seal
|
Two stainless steel flanges with vacuum gauge and valves included
A hook ring is welded inside of top flange for hanging thermal block or crucible by wire |
|||
|
Heating Element
|
Resistance Wire
|
|||
|
Tube Material
|
High Purity Quartz
|
|||
|
Power
|
28 kw
|
|||
|
Heating Zone length
|
300mm+300mm+300mm ( three zones)
|
|||
|
Constant Temperature Zone
|
200mm+200mm+200mm (+/-1ºC)
|
|||
|
Tube Length
|
1000mm,1200mm,1500mm
|
|||
|
Outer Size
|
450mm*560mm*1500mm
|
|||
|
Tube Diameter(mm)
|
50
|
60
|
80
|
100
|
|
Net Weight(kg)
|
46
|
58
|
69
|
75
|
|
Warranty
|
One year limited warranty (Consumable parts such as processing tubes are not covered by the warranty)
|
|||
FAQ:
1.Is your company accepting customization?
We have own factory and excellent technical team, and we accept OEM service.
