Product Details:
|
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Place Of Origin: | Donggaun,china | Heating Rate: | 0~20℃/Min |
| Temperature Accuracy: | ±1℃ | Max.Temp: | 1200℃ |
| Temperature Control: | 0-1100℃ | Model Number: | GSA45T |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

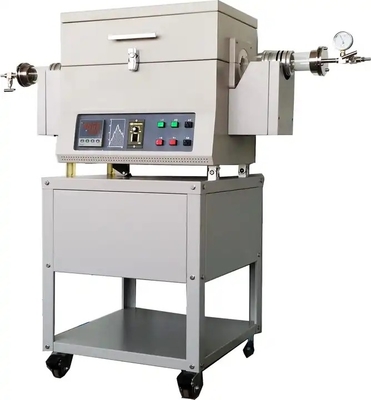

Rotary Tube Furnace At 1400℃ Is Used For Metallurgical Test Of Activated Carbon
The rotary tube furnace is made into an adjustable tilt Angle, which is adjusted by electric or hydraulic support (the weight of the entire furnace body to choose electric or hydraulic control) and the discharge speed is adjusted by adjusting the tilt pitch. The furnace tube drive is installed at the inlet, which is composed of a transmission system of gear, reducer, motor and frequency converter to drive the rotation of the furnace tube, and the rotation speed can be adjusted. And by adjusting the speed to adjust the discharge speed, the rotary tube furnace adopts the spiral feeding mode, to the reducer, motor, speed control system to control and adjust the spiral rotation speed, in order to achieve the speed of material into the. The furnace body can be detachable, up and down, the import and export system can be detachable, all now assembled, convenient for customers to handle. The furnace adopts alumina ceramic fiber board to prevent heat spillover. The ceramic fiber board can make the electric furnace rise faster and the heat preservation effect is more significant so as to achieve energy saving.

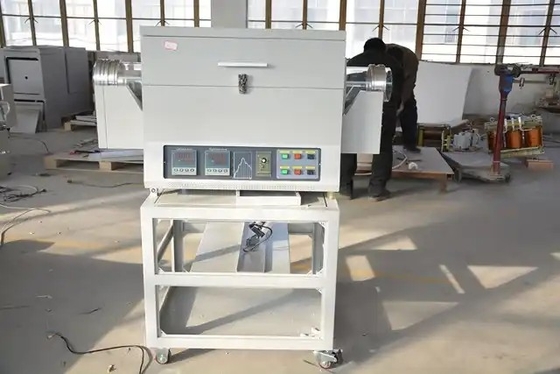

Tilting rotary tube furnace The temperature of the tilting rotary tube furnace is 1700℃, the diameter of the tube is 80mm, and the length of the tube is one meter. It is equipped with automatic feeding machine and Angle measuring instrument, and the tilting Angle is different according to the temperature
The tilting rotary tube furnace (with automatic feed machine) series is a product for metal oxides (e.g. Lithium ion battery raw materials) or other inorganic materials (such as catalysts in the petrochemical industry) of fine particles reoxidation or reducing atmosphere for roasting, powder metallurgy, ceramics, refractory materials, lithium anode and cathode materials, new energy and other industries granular powder sintering, calcination, determination of materials in a certain atmosphere under the condition of professional equipment
Specifications:
| Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc | ||
| Gas control | The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump. | ||
| Rotary system |
Tube rotate speed:0-10 RPM The tube can rotate 360 degrees,electric gear drive Push button control switch |
||
| Tilting system |
Maximum inclination: 0-30° (adjustable) Bar-driven Push button control switch |
||
| Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. | ||
| Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. | ||
| Furnace chamber design | Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. | ||
| Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. | ||

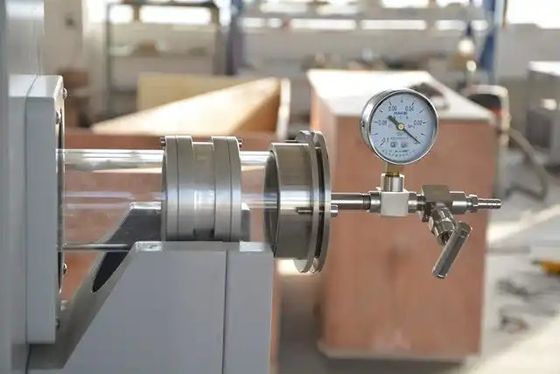

| Sealing way | Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing | ||
|
Temperature controlling
|
Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. | ||
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. | ||
| Warm Tips |
1.For improve the service life of the heating assembly , we suggest that the heating rate should not exceed 10 ℃ / min. 2.The cooling rate should not exceed 5 ℃ / min. 3.The furnace has no vacuum sealing and is prohibited from entering toxic or explosive gases. 4.Small cracks may occur on the surface of the furnace. This is a normal phenomenon, does not affect the normal use, cracks can be repaired with alumina coating. 5.Heating furnace can be replaced |
||
| Warranty |
One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. |
||
FAQ :
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
