Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Maximum Load: | 100(KG) | Bed Dimension: | 1110*1310*650(mm) |
| Amplitude: | 1 Inch (25.4mm) ± 15% (mm) | Mains Input: | 220/50(V/HZ) |
| Driver Power: | 1.5(KW) | Machine Body Size: | 1000*1100(mm) |
| High Light: | Vibration Tester,Electrodynamic Shaker |
||
Automobile Simulation Transport Vibration Shaker, Vibration Test Equipment
product presentation:
Simulation transportation experiment is a simple and necessary means to test whether the product packaging design meets the transportation conditions. Only the testing equipment that meets the standards can ensure the quality and avoid unnecessary losses. This transport table is based on the American and European transport standards, and referring to similar equipment in the United States improved manufacturing, with high precision, low noise, easy to operate, low price and other advantages, can be widely used in toys, electronics, furniture, gifts, ceramics and other products packaging detection.
Product characteristics:

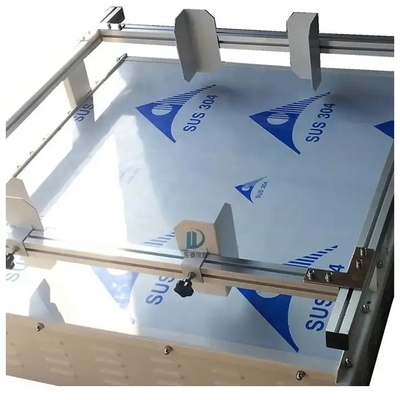

1.heavy channel steel base with damping rubber, stable operation and easy to disassemble.2, the table is made of stainless steel, beautiful and durable.3, with aluminum profile with handwheel mechanism fixed product under test, convenient and flexible.4, the transmission part of the synchronous noise belt, DC motor buffer start, can make the noise to minimum.
|
Product name
|
Simulation transport vibration testing machine
|
|
Vibration frequency
|
100-300±1%(rpm) continuously adjustable
|
|
amplitude
|
1 inch (25.4mm) ±15%
|
|
Maximum load
|
200kg
|
|
Effective size of table
|
1000*1100mm
|
|
Digital display speed precision
|
1rpm/min
|
|
Digital display speed stability
|
Not more than ± 3rpm/min
|
|
Timing setting range
|
0.1 second - 99.99 hours
|
|
Motor power
|
1HP DC motor
|
|
Supply voltage
|
220V, 50HZ single-phase
|
|
Maximum current
|
5A
|
|
Machine weight
|
About 100kg
|
|
Overall dimension
|
1110*1310*650mm
|
