Product Details:
|
| Place Of Origin: | Donggaun,china | Voltage: | 380V |
|---|---|---|---|
| Weight (T): | 23 T | Warranty: | 1 Year |
| Power (kW): | 120 | Key Selling Points: | Accurate Temperature Control |
| Loading Capacity: | 500kg To 1500kg(varied By Model) | Temperature Uniformity: | ±3 C |
| High Light: | Vacuum Induction Furnace,Vacuum Melting Furnace |
||

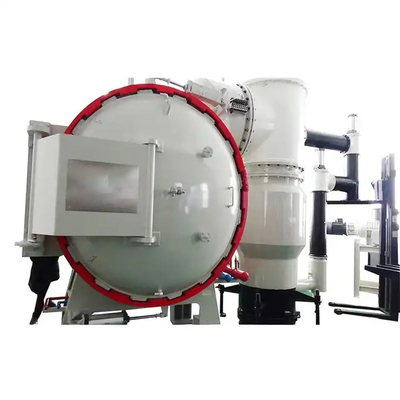

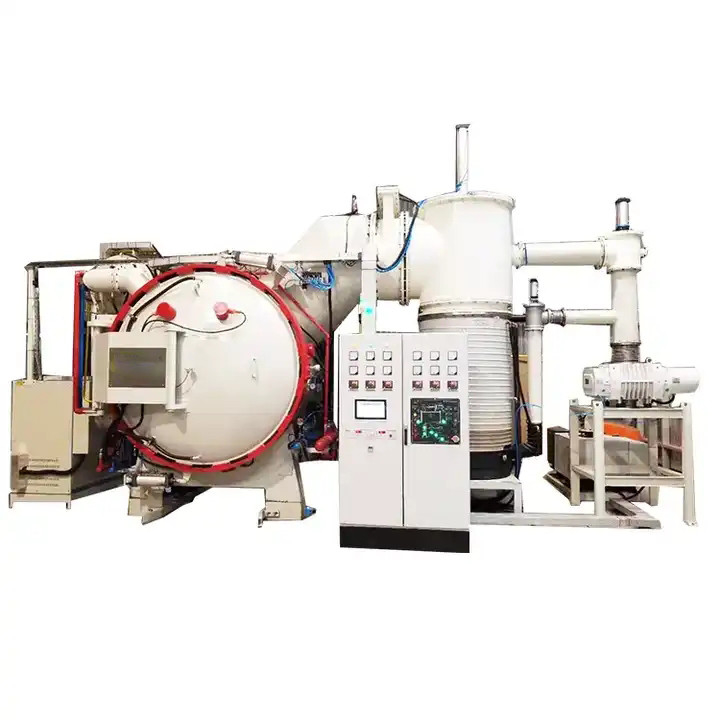

Accurate Temperature Control Vacuum Furnace For Tools Brazing
product presentation:
Vacuum brazing furnace is mainly used for aircraft parts, automobile parts, electronic communication parts, household appliances, heat exchangers, all kinds of radiators of aluminum brazing, copper brazing, stainless steel brazing and nickel alloy brazing. Due to heating under vacuum, the grease and oxide film on the workpiece surface can be removed. Therefore, the parts have high surface brightness, no need to use flux, and no need to clean after welding.
|
Name
|
Parameter
|
|
High temperature vacuum soldering furnace
|
Brazing usage / soldering usage
|
|
Model
|
Horizontal / Vertical
|
|
Ultimate vacuum
|
Custom made
|
|
Pressure rising rate
|
0.5pa/h
|
|
Max temperature
|
Custom made
|
|
Temperature uniformity
|
±3℃ / ±5℃
|
|
Heating power
|
Custom made
|
|
Temperature control method
|
Intelligent programmable temp controller
|
|
Control method
|
PLC auto/manual interlock protection
|
|
Max gas charging pressure (absolute pressure)
|
Custom made
|
Application
vacuum aluminum brazing furnace for auto parts and aviation parts
Vacuum brazing is carried out in the absence of air, using a specialized furnace, and delivers significant advantages: extremely clean, flux-free braze joints of high integrity and superior strength. Improved temperature uniformity when heating in a vacuum, and lower residual stresses due to slow heating and cooling cycle, results in significantly improved thermal and mechanical properties of the material. Other benefits of vacuum brazing include heat treating or age hardening of the work piece as part of the metal-joining process, all in a single furnace cycle. Like conventional brazing, vacuum brazing is easily adapted to mass production.
-No oxidation, no weld flux, no pollution, no air hole;
-Low temperature brazing, high temperature brazing, continuous brazing;
-It works on Titanium (Ti), Zirconium (Zr), Niobium ( Nb), Molybdenum (Mo) refractory metal alloys and dissimilar metals too;
-High automation, easy operation, easy maintain.
FAQ:
Q:Are you a factory?
A:Yes,We are China leading vacuum furnace manufacturer ,It was form -erly known as China National Vacuum Research Institute. Our factory is
covering an area of over 10,000sq.m.We have powerful R&D team and manufacturing facility.
Q:Do you have customization or OEM service ?
A:We can provide the regular and standard model sizes,at the same time, we can customize furnaces as product ,work piece size, and
temperature requirement .Meanwhile, we offer OEM service under the strict industrial standard.
Q:What kind of quality standard dose your furnace follow?
A:Firstly, we are ISO9001:2008 and CE certified factory,All the processes are strictly following the standard of the metallurgy process. In the facto
-ry, we have about 10employees that work in the quality assurance department.
Q:Can you serve customer oversea like installation and debugging ?
A:Yes,we can dispatch our engineer to your city for installation and debugging or other service. Meanwhile,we will offer relevant docum -ents: The
plan of equipment, Foundation condition graph, The layout of equipment, Electric control system schematic diagram, Main accessorie operating
instr-uctions & qualification and on.
