Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Frequency Range: | 2~4000Hz | Max. Displacement: | 38 Mm P-p |
| Effective Load(M1+M2): | 120 Kg | Flux Leakage: | <10gauss |
| Allowable Eccentric Moment: | 300N.m | Output Power: | 4KVA |
| Highlight: | Vibration Test Table,Vibration Shaker Table |
||

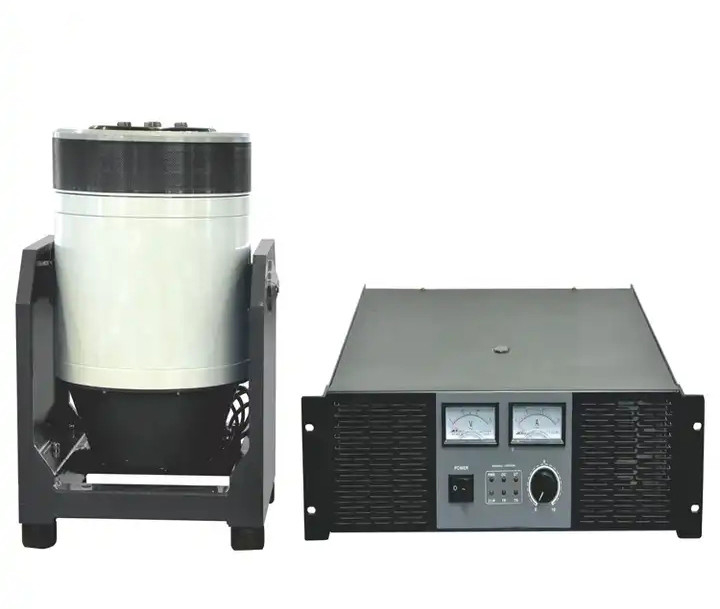

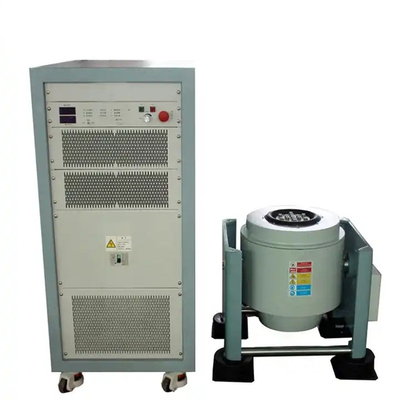

Vibration testing machine is a kind of test equipment used to simulate the vibration environment of the product in the process of transportation, use and storage. It can evaluate and verify the reliability, durability and adaptability of the product in the vibration environment, so as to provide basis and reference for the design, manufacture and improvement of the product.
Vibration testing machine is usually composed of shaking table, vibration control system, data acquisition and analysis system. Among them, vibration table is the core component of vibration test, its main function is to generate various types of vibration signals. The vibration control system is used to control the vibration frequency, amplitude, phase and other parameters of the vibration table, and record the data in the process of vibration test. The data acquisition and analysis system is used to collect, process and analyze the data generated in the process of vibration test, so as to evaluate the vibration performance of the product.
|
Model |
GS364T |
|||
|
Max. sine exciting force |
300Kg.f peak |
|||
|
Max. random exciting force |
300Kg.f r.ms |
|||
|
Max. shock exciting force |
600Kg.f peak |
|||
|
Frequency range |
2~4000Hz |
|||
|
Max. displacement |
38 mm p-p |
|||
|
Max. velocity |
1.8m/s |
|||
|
Max. acceleration |
100G (980 m/s2) |
|||
|
120 kg |
||||
|
Vibration isolation frequency |
2.5 Hz |
|||
|
Diameter of armature |
150 mm |
|||
|
Mass of armature |
3kg |
|||
|
Table screw |
13×M8 |
|||
|
Flux leakage |
<10gauss |
|||
|
300N.m |
||||
|
Equipment dimensions |
750mm×555mm×670mm (excluding extending table) |
|||
|
Equipment weight |
About 560Kg |
|||
|
Output power |
4KVA |
|||
|
Output voltage |
100V |
|||
|
Output current |
30A |
|||
|
Amplifier efficiency |
≥90% |
|||
|
Switching frequency |
116KHz |
|||
|
Signal to noise ratio |
≥65dB |
|||
|
Noise |
≤70dB |
|||
|
Amplifier dimension |
720mm×545mm×1270mm |
|||
|
Functions |
Temperature, air pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss, etc. |
|||
|
Hardware configuration: |
2-channel inputs, 1-channel outputs |
|||
|
Control computer |
Original computer is provided with a 17” liquid crystal display and a keyboard / an optical mouse |
|||
|
Software |
Chinese / English instructions are provided, and the software is available for time-domain and frequency-domain analysis, signal source and sine frequency sweep analysis, etc. It also can automatically generate WORD test report, display and store signal and data, and set testing parameters and analysis function. |
|||
|
Operating system |
Windows 7/8 |
|||
|
Acceleration sensor LAB |
Frequency range: 1 to 12000Hz Sensitivity: 30pC/g Temperature range: -24℃ to 250℃ |
|||
|
Material |
Aluminum-magnesium alloy with surface hard anodized |
|||
|
400mm×400mm |
||||
|
Fixing hole |
||||
|
Frequency of use |
||||
|
Weight |
15KG |
|||
|
Blower power: |
1.1KW |
|||
|
Flow rate |
1404m3/h |
|||
|
Power supply |
AC three-phase 380V/50Hz, 15 KVA |
|||
|
Ground resistance |
≤4Ω |
|||
FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
