Product Details:
|
| Core Components: | PLC, Pressure Vessel, Pump | Voltage: | 380V 50HZ |
|---|---|---|---|
| Weight (T): | 7T | Warranty: | 1 Year |
| Size: | Customization | Applicable Industries: | Brazing Industry |
| Dimension(L*W*H): | 700x500x500mm | Power (kW): | 80KW |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

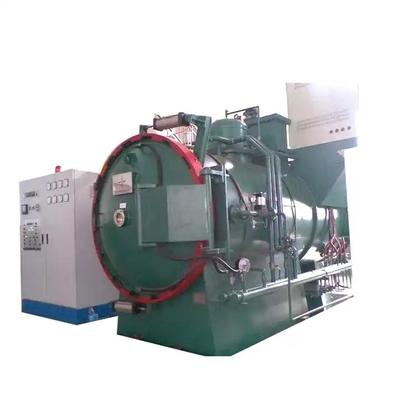

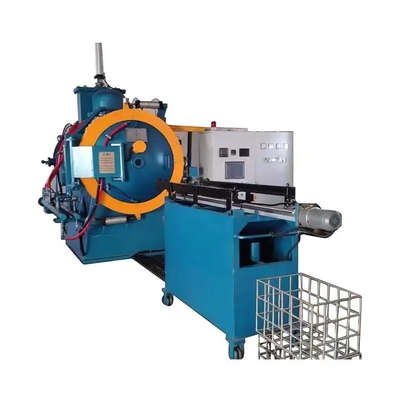

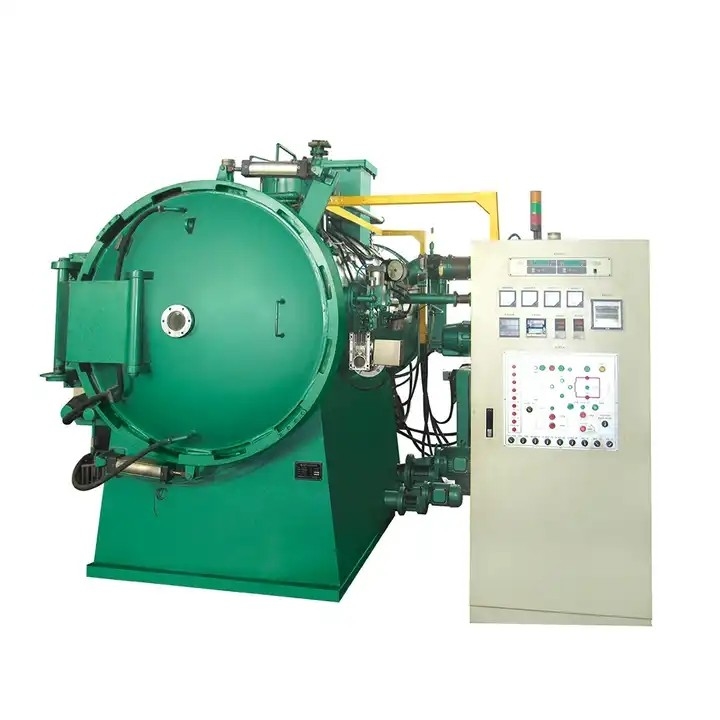

Bright Quenching High Temperature Gas Cooled Oil Quenching Vacuum Furnace
Features:
Structure of Double-Deck Cylinder, with material Carbon Steel.
Equipped with water cooling system, ensure outer shell safety to touch.
Heating Chamber:
1300℃ by Graphite heating element.
1300℃ by Molybdenum alloy heating element.
Equipped with high quality Graphite, with homocentric design, to ensure the uniformity of temperature heating.
The insulating layer is stainless steel outer-frame, heat screen is of soft carbon felt, to ensure the performance of heat
insulation.
Material for Heat Treatmen:
Applicable to aluminum plate-fin heat exchangers, automobile radiators, automotive air conditioning evaporators, condensers, radar
network antennas and wave-guide tubes, etc.
Vacuum System:
With vacuum level is 10-3 Pa level demanding. Operate with Mechanical Pump,Roots Pump & Diffusion Pump, Three-level vacuum system.
Under no-load/ dry degassing, it takes no more than 50 minutes to reach demand vacuum.
Control System:
Easy operation, Can be operated by single person;
The whole operation can be recorded automatically.
Model selection reference (can be customized according to the user's requirements);
| Type | Uniform temperature zone (mm) | Tmax(℃) | Limiting vacuum(Pa) | Uniformity(℃) | Pressure rise rate(Pa/h) | Cooling pressure(Bar) | Loading |
| G324 | 300*200*450 | 1300 | 3.0*10-1 | ±5 | ≤0.5 | ≤2 | 80 |
| G436 | 450*300*650 | 1300 | 3.0*10-1 | ±5 | ≤0.5 | ≤2 | 200 |
| G649 | 600*400*900 | 1300 | 3.0*10-1 | ±5 | ≤0.5 | ≤2 | 500 |
| G7511 | 750*500*1150 | 1300 | 3.0*10-1 | ±5 | ≤0.5 | ≤2 | 700 |
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
