Product Details:
|
| Maximum Temperature (℃): | 1320 | Valid Zone: | 1500x800x800 |
|---|---|---|---|
| Loading Capacity（kg）: | 1000 | Core Components: | PLC, Pressure Vessel, Pump |
| Voltage: | 380V 50HZ | Power (kW): | 120KW |
| Size: | Customization | Warranty Of Core Components: | 1year |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

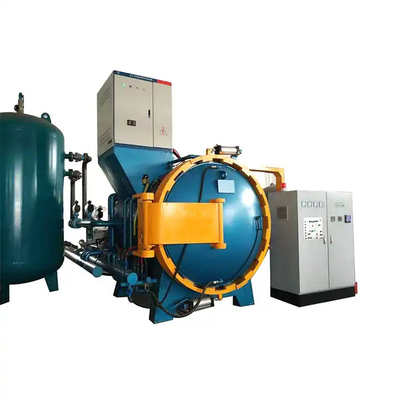

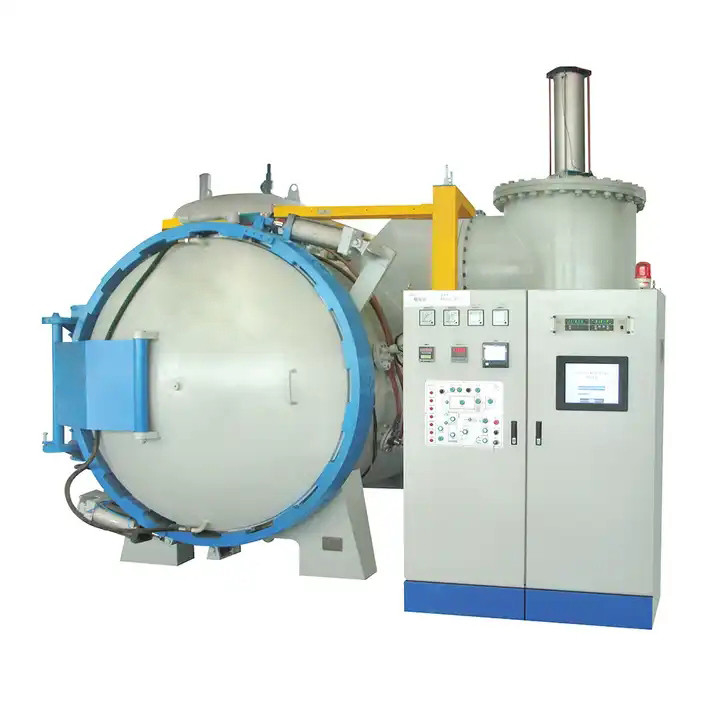

High Temperature And High Pressure Graphite Quenching Gas Quenching Vacuum Furnace
Vacuum Graphite Tube Sintering Furnace Application:
Ultra high temperature graphitization furnace is our engineering and technical personnel digest and absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology, launched a high performance intelligent
Heating furnace. Suitable for high temperature treatment of materials in vacuum or gas protection state.
Technical Specifications:
|
Single-chamber Vacuum High Pressure Gas Quenching Furnace
|
||||||
|
Model
|
Valid zone
|
Loading Capacity(kg)
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
GS-40
|
450x300x300
|
100
|
1320
|
40
|
5x10-3or4x10-1
|
10
|
|
GS-80
|
600x400x400
|
150
|
1320
|
80
|
5x10-3or4x10-1
|
10
|
|
GS-120
|
700x500x500
|
250
|
1320
|
120
|
5x10-3or4x10-1
|
10
|
|
GS-150
|
900x600x600
|
500
|
1320
|
150
|
5x10-3or4x10-1
|
10
|
|
GS-300
|
1500x800x800
|
1000
|
1320
|
300
|
5x10-3or4x10-1
|
10
|
|
The heating chamber adopts graphite tube heating, and the thermal-protective coating adopts a composite thermal insulationstructure of graphite soft felt and graphite hard felt.
For products with high color requirements or special materials, the metal screen structure of molybdenum and stainless steelcomposite insulation can also be adopted according to the special requirements of customers;
The size of valid zone can be customized according to customer requirements;
Equipped with low-temperature convection heating system;
Computer control system;
|
||||||
|
Product description: mainly used for bright quenching of tool steel, die steel, with small deformation and no need for secondarycleaning.
|
||||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
