Product Details:
|
| Model NO: | GSA-652N | Uses: | Vibration Testing Machine |
|---|---|---|---|
| Power: | Electronic | Warranty: | One Year |
| Max.Acceleration(G): | 17 | Amplitude(mm): | 0~5 |
| Direction Of Vibration: | Vertical Or Level | Specification: | 700*560*680 Mm |
| High Light: | Vibration Tester,Electrodynamic Shaker |
||

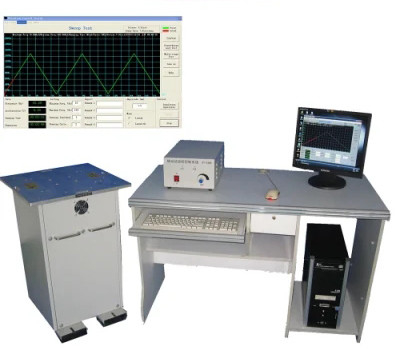

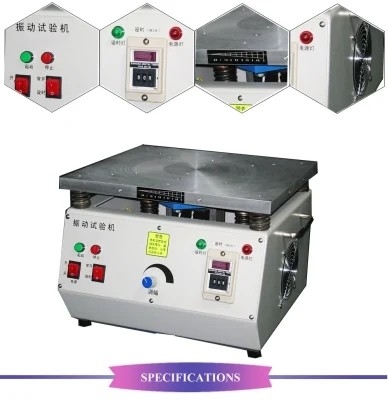

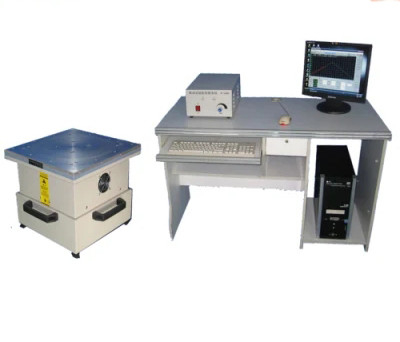

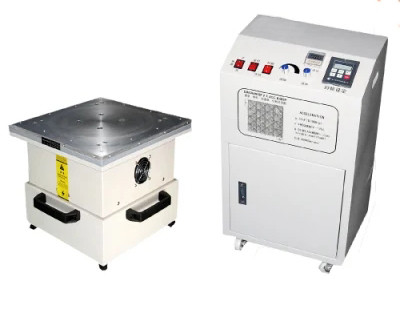

CE Certified XYZ Triaxial Vertical Vibration Tester Used For Battery Testing
Applicable Industries:
Universal Vibration Test Machine is widely applicable to the defense, aerospace, communications, electronics, automobiles, household appliances and other industries. The type of equipment used to detect early failure, to simulate the actual condition assessment and structural strength test, and a wide range of applications, applicable wide test results significantly reliable.
Vibration test machine
1. User-friendly operation and control, using professional monitoring and control software manipulation to make the equipment work more stable, more reliable.
2. Machine using quality stainless steel for body, installation is simple, smooth running, large load.
3. Sweep and fixed-frequency mode of operation, to meet the testing requirements of different industries.
4. Ability of anti-magnetic interference.
5. Safe and reliable protection function
Features Of Programmable Electrodynamic Vibration Testing Equipment with three axis shaker
1. Digital instrument display the vibration frequency synchronization squelch belt drive the test fixture using rail,easy of operation,safety,the machine base is made of heavy duty channel with damping pads easy installation,smooth running,without having to install anchor bolts,DC motor speed,smooth running load capability,the rotary vibration(commonly known as the Happy Valley-type),in line with European standards for the transport.
2.Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control software, test of the whole process of handling and output.
3.Display functions: dynamic display test curves, multi-Dan, on the number of data.
4. Curve recorder features: real- time record of the test data, test data automatically, the test results can be stored, printed.
Specification
| Model Number | GSA-652N | |
| Power: | AC 220V/50Hz ±2% | |
| Operating ambient temp: | 0~+45ºC | |
| performance | Max.Load(kg): | 40kg |
| Frequency range(Hz): | 3~200Hz | |
| Sweep-frequency range(Hz): | 3~200Hz | |
| Amplitude(mm): | 0~5mm | |
| Vibration direction: | vertical and horizontal | |
| Set time range(s): | 1~350000 s | |
| Working table size L.W.H(mm) | 450×450×43mm | |
| Machine size L.W.H(mm): | 1300×570×450mm | |
| Control chamber size L.W.H(mm: | 420×300×750mm | |
| Power(KVA): | 2.8 | |
