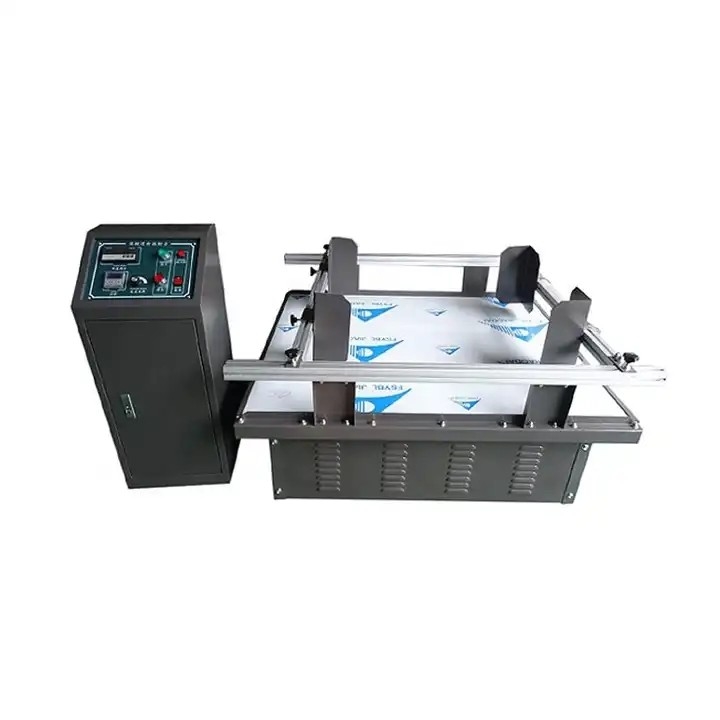

Transportation Simulation Vibration Shaker , Packaging Carton Vibration Tester

Large Image : Transportation Simulation Vibration Shaker , Packaging Carton Vibration Tester

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	GSA-401B

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-30working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

Transportation Simulation Vibration Shaker , Packaging Carton Vibration Tester

Description

Warranty:	2 Years	Place Of Origin:	Guangdong,China
Model Number:	GSA-401B	Testing Table Dimension:	110x98cm Or Customized
Frequency:	2-5 Hz Continuously Adjustable	Motor:	Rotary DC Motor
Power:	Electronic, 220 V60Hz	Maximum Acceleration:	1.25g
High Light:	Vibration Tester , Electrodynamic Shaker

Transportation Simulation Vibration Shaker, Packaging Carton Vibration Tester

product presentation:

Simulate transport vibration test table is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.

Product Feature:

1. Digital instrument display vibration frequency;

2. Synchronous belt transmission mute, very low noise;

3. Test items using clamping rail type, easy to operate, safe;

4. Machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, Without Install ground pin screw;

5. DC motor speed control, running smoothly, load capability;

7. Rotary vibration (commonly known as Valley-type).

Specification

Model	GSA-401B	GSA-401B	GSA-401B
Rated load	75 kg	150 kg	230 kg
Test table size	120*100 cm	130*120 cm	180*150cm
Maximum Acceleration	1.25g
Frequency	Frequency of 2-5 Hz continuously adjustable
Amplitude	25.4MM(1 Inch)
Power	220V 60Hz
Motor	Rotary DC motor
Fence Height	33 cm, 38 cm, 42 cm
Dimension	120×110 cm	140×130 cm	190×160 cm
Gross	169 kg	288 kg	396 kg

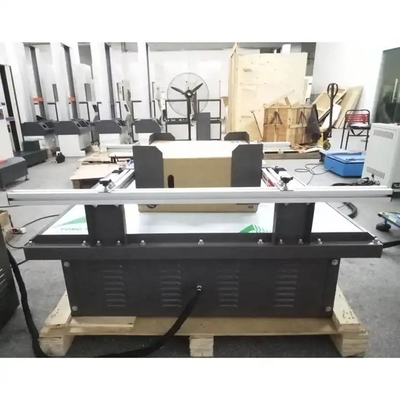

Transportation Simulation Vibration Shaker , Packaging Carton Vibration Tester 0

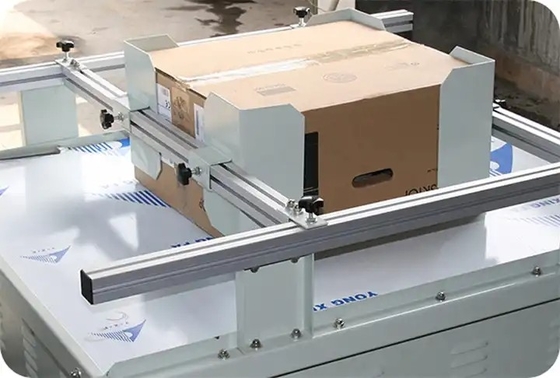

Transportation Simulation Vibration Shaker , Packaging Carton Vibration Tester 1

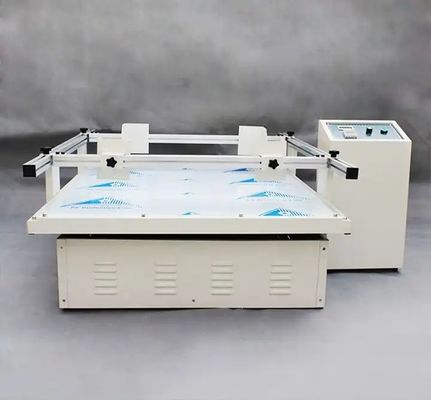

Transportation Simulation Vibration Shaker , Packaging Carton Vibration Tester 2

FAQ

Q1: How long is the delivery time?
A:Normally 15-30 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.

Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc

Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc

Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .

Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
