Product Details:
|
Warranty: | 2 Years | Place Of Origin: | Donggaun,china |
---|---|---|---|
Himdity Range: | 45~75% | Usege Range: | LED And Other Luminaries Test |
Sample: | Available | Temperature Range: | 5~50℃ |
Envir. Air Pressure: | 85~106Kpa | Certification: | CE SGS ROHS UL |
High Light: | Thermal Test Chamber,Environmental Test Chamber |

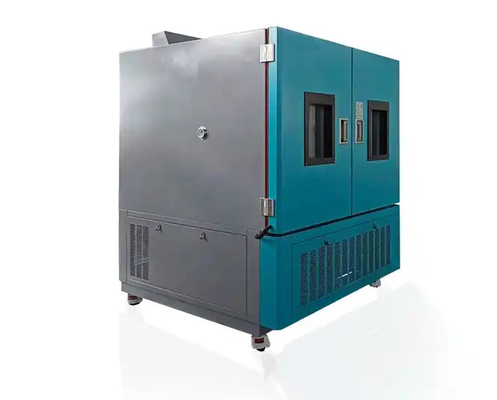

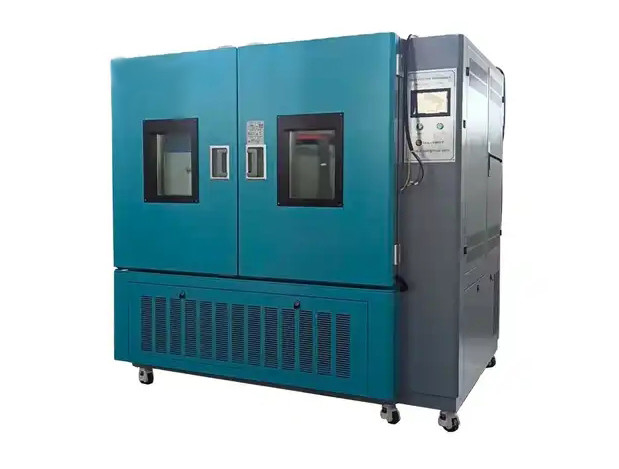

Temperature Range 5~50℃ Thermal Shock Test Chamber, Environmental Test Chamber
product presentation:
Thermal shock test chamber in line with IEC60068-2-1 (GB/T2423.1), IEC60068-2-2 (GB/T2423.2), IEC60068-278, IEC60598-1, GB/T2423.17, GB/T5170.2, GB/T5170.5. Thermal shock test chamber in line with IEC60068-2-1 (GB/T2423.1), IEC60068-2-2 (GB/T2423.2), IEC60068-278, IEC60598-1, GB/T2423.17, GB/T5170.2, GB/T5170.5. Applicable to IES LM-80-08 standard energy saving lamps/leds, electrical products, electronic components, materials, etc. The insulation layer is made of polyurethane hard foam microfine glass fiber. Insulated door frame with high temperature aging silicone rubber seal. Temperature controller using Korea TEMI Chinese and English display, Germany Siemens PLC. It can communicate with the PC viaRS-232. • The temperature sensor is platinum PT100Ω/ mv independent heating system adopts nickel-chromium electric heater - refrigeration system adopts fully enclosed air-cooled single-stage compression refrigeration. The circulation system adopts temperature-resistant and low-noise air conditioning motor and multi-blade centrifugal wind wheel. The safety protection system includes leakage, short circuit, overtemperature, motor overheating, compressor pressure, overload and overcurrent protection. Working voltage :AC380V±10% three-phase, frequency 50Hz/ 60hz Working environment: Temperature 5℃-+30℃ humidity s85%R.H Suitable for IES LM-80-08 standard energy-saving lamp /LED, electrical products, electronic components, materials, etc. The insulation layer is made of polyurethane hard foam microfine glass fiber. Insulated door frame with high temperature aging silicone rubber seal. Temperature controller using Korea TEMI Chinese and English display, Germany Siemens PLC. It can communicate with the PC viaRS-232. • The temperature sensor is platinum PT100Ω/ mv independent heating system adopts nickel-chromium electric heater - refrigeration system adopts fully enclosed air-cooled single-stage compression refrigeration. The circulation system adopts temperature-resistant and low-noise air conditioning motor and multi-blade centrifugal wind wheel. The safety protection system includes leakage, short circuit, overtemperature, motor overheating, compressor pressure, overload and overcurrent protection. Working voltage :AC380V + 10% three-phase frequency 50Hz/ 60hz Working environment: temperature 5℃-+30℃ humidity s85%R.H
technical specification
thermal shock test chamber | |||||
Model (cm) | GSA-81N | GSA-82N | GSA-83N | GSA-84N | GSA-85N |
Workroom Dimensions | 50x60x75 | 70x80x90 | 100x100x100 | 100x100x130 | 100x100x150 |
Exterior Dimensions | 105*102*200 | 132*132*217 | 167*152*231 | 217*152*231 | 245*160*231 |
Work Power | 7.0kW | 13.5kW | 15.0kW | 16.5kW | 16.5kW |
Temperature Range | A: -20℃-150℃ B: -40℃-150℃ C: -60℃-150℃ D: -70℃-150℃ | ||||
Humidity Range | 30%~98% R.H | ||||
Fluctuation/Evenness | ±0.5℃/±2℃ | ||||
Humidity Deviation | -2%~-3% R.H | ||||
Temperature Rise Speed | 1.0℃~3.0℃/min | ||||
Temperature Down Speed | 0.7℃~1.0℃/min |

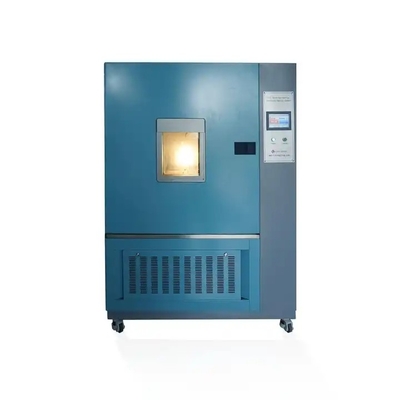

High and Low Temperature Chamber with Programmable Function (GDJW Series) | |||||
Working Room Size | GDJW-225* | GDJW-500* | GDJW-010* | GDJW-013* | GDJW-015* |
Workroom Dimensions (cm) | 50x60x75 | 70x80x90 | 100x100x100 | 100x100x130 | 100x100x150 |
Temperature Range | A: -20℃-150℃ B: -40℃-150℃ C: -60℃-150℃ D: -70℃-150℃ | ||||
Fluctuation/Evenness | ±0.5℃/±2℃ | ||||
Temperature Rise Speed | 1.0℃~3.0℃/min | ||||
Temperature Down Speed | 0.7℃~1.0℃/min |
High Temperature Chamber (GW Series) | |||||
Working Room Size | GW-225 | GW-500 | GW-010 | GW-013 | GW-015 |
Workroom Dimensions (cm) | 50x60x75 | 70x80x90 | 100x100x100 | 100x100x130 | 100x100x150 |
Temperature Range | Enviromental Temperature ~150℃ (Option can be max 300℃) | ||||
Fluctuation/Evenness | ±0.5℃/±2℃ | ||||
Temperature Rise Speed | 1.0℃~3.0℃/min |
