Product Details:
|
Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
---|---|---|---|
Rated Force (peak) Under Sinusoidal: | 32KN | ApplicationVertical Vibration Tester Size: | 4505*2500*840 Mm |
Maximum Rated Speed (sin Peak): | 2m/s | Power: | Electronic |
Impact Thrust: | 64KN | Frequency Range: | 200 Hz |
High Light: | Vibration Tester,Electrodynamic Shaker |

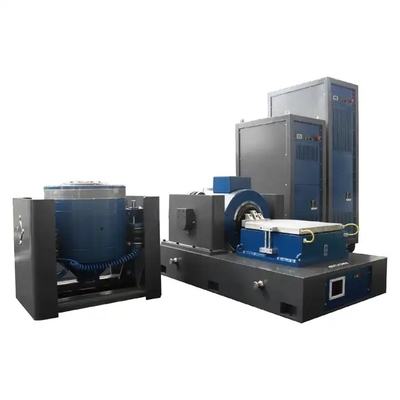

High Frequency 200HZ Electrodynamic Shaker For Laboratory Factory Parts Testing
product presentation:
This series of electric vibration products, using the modern advanced technology and special process of "double magnetic circuit structure", "self-generated skeleton moving coil", "linear bearing and roller guide", "trunnion vibration isolation", can respectively complete the triaxial sinusoidal vibration test and broadband random vibration test, can complete the classic (half sine, trapezoidal, after peak saw tooth) pulse and impact response spectrum test. The environmental test box can be configured to form three comprehensive environmental test system, and the comprehensive environmental test of mechanics and temperature and humidity can be carried out. It is suitable for the test and detection of products in the fields of national defense, weapons, aviation, aerospace, communications, electronics, electricians, transportation, home appliances and so on. This series of electric vibration products, using the modern advanced technology and special process of "double magnetic circuit structure", "self-generated skeleton moving coil", "linear bearing and roller guide", "trunnion vibration isolation", can respectively complete the triaxial sinusoidal vibration test and broadband random vibration test, can complete the classic (half sine, trapezoidal, after peak saw tooth) pulse and impact response spectrum test. The environmental test box can be configured to form three comprehensive environmental test system, and the comprehensive environmental test of mechanics and temperature and humidity can be carried out. It is suitable for the test and detection of products in the fields of national defense, weapons, aviation, aerospace, communications, electronics, electricians, transportation, home appliances and so on.
Advantage of Vibration control system

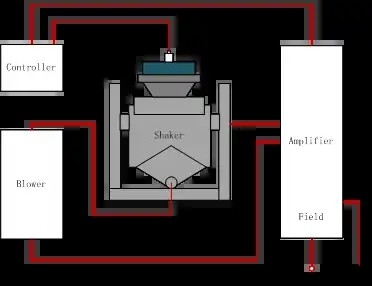

Electro-dynamic vibration generator system
|
|
Rated Force (peak) under sinusoidal
|
32KN
|
Impact thrust
|
64KN
|
Frequency range
|
200 Hz
|
Continuous displacement
|
59 mm p-p
|
Impact displacement
|
59 mm p-p
|
Maximum rated speed (sin peak)
|
2m/s
|
Maximum Acceleration (sin)
|
0.53 m/s²
|
Diameter of moving coil
|
445 mm
|
Allowable unbiased load torque
|
300 N•m
|
Equivalent mass of moving parts
|
301 g
|
Axial vibration isolation frequency
|
2.5 Hz
|
Maximum load for sample
|
500 kg
|
Magnetic flux leakage
|
<10 gauss
|
Vertical vibration tester size
|
4505×2500×840 mm(L*W*H, without package)
|
Vertical vibration tester weight
|
About5800 kg (without package)
|
Power amplifier
|
|
Maximum output power
|
32 kVA
|
S/N (Signal-to-noise Ratio) s-/N
|
≥65 dB
|
Rated output voltage
|
100 V
|
Conversion efficiency
|
≥90%
|
System protection
|
Output over-voltage, output over flow, amplifier over temperature, vibration table over displacement, horizontal slide over the
displacement, cooling system failure, output power under-voltage, amplifier unit failure, excitation power failure, three-phase power supply failure, etc. |
Power amplifier size
|
1720*1200*850 mm (L*W*H, without package)
|
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer located in Dongguan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
4. How about packaging? If machine damaged, what should I do ?
Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement. Damage haven't happened before, if happen, we will arrange replacement.
5. If I want to visit your factory, is the traffic convenient ?
Our company traffic is very convenient, it is only 10 minutes by car or taxi from our city light rail to our company, we also can arrange the shuttle bus for you to our factory.
6. Does your product have CE certification ?
Yes, we not only have the CE certification,but also have the FCC,ISO,etc.
7. If there is not any size meet my need, can I customiz ?
Of cause, we are the 13 years factory that with the rich experience in custom made service,not only can provide the customiz serivice,but also can provide the professional advice.
