Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-6540 | Rated Force (peak) Under Sinusoidal: | 32KN |
| Vertical Vibration Tester Size: | 4505*2500*840 Mm | Maximum Rated Speed (sin Peak): | 2m/s |
| Impact Thrust: | 64KN | Frequency Range: | 200 Hz |
| Highlight: | Vibration Test Table,Vibration Shaker Table |
||
Electronic Vibration Tester is a device used to detect the normal working state of mechanical equipment, electronic components and other objects under vibration. It can measure the vibration amplitude, frequency, acceleration and other parameters, and through data analysis to determine whether the object to be tested is working normally. At the same time, it can also monitor and analyze the vibration environment to help users find the source of vibration and take appropriate measures to reduce the vibration level.
Electronic vibration tester is widely used in aerospace, automobile, electronics, machinery manufacturing and other fields, can be used to detect the vibration of aircraft, automobiles, generators, motors, bearings, gear boxes, hydraulic pumps and other mechanical equipment. Its use can help users improve the reliability and security of equipment, reduce equipment failure and damage, but also help to improve production efficiency and reduce maintenance costs.
Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
|

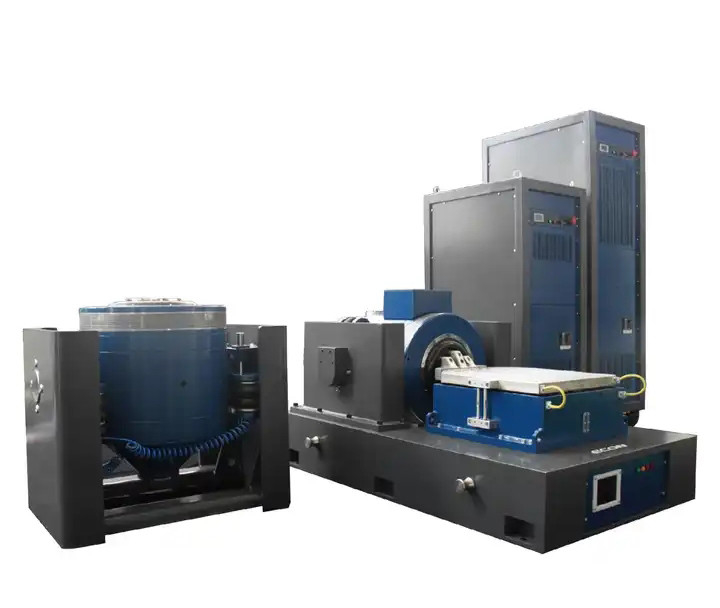

Electro-dynamic vibration generator system
|
|
|
Rated Force (peak) under sinusoidal
|
32KN
|
|
Impact thrust
|
64KN
|
|
Frequency range
|
200 Hz
|
|
Continuous displacement
|
59 mm p-p
|
|
Impact displacement
|
59 mm p-p
|
|
Maximum rated speed (sin peak)
|
2m/s
|
|
Maximum Acceleration (sin)
|
0.53 m/s²
|
|
Diameter of moving coil
|
445 mm
|
|
Allowable unbiased load torque
|
300 N•m
|
|
Equivalent mass of moving parts
|
301 g
|
|
Axial vibration isolation frequency
|
2.5 Hz
|
|
Maximum load for sample
|
500 kg
|
|
Magnetic flux leakage
|
<10 gauss
|
|
Vertical vibration tester size
|
4505×2500×840 mm(L*W*H, without package)
|
|
Vertical vibration tester weight
|
About5800 kg (without package)
|
|
Power amplifier
|
|
|
Maximum output power
|
32 kVA
|
|
S/N (Signal-to-noise Ratio) s-/N
|
≥65 dB
|
|
Rated output voltage
|
100 V
|
|
Conversion efficiency
|
≥90%
|
|
System protection
|
Output over-voltage, output over flow, amplifier over temperature, vibration table over displacement, horizontal slide over the
displacement, cooling system failure, output power under-voltage, amplifier unit failure, excitation power failure, three-phase power supply failure, etc. |
|
Power amplifier size
|
1720*1200*850 mm (L*W*H, without package)
|
|
Vertical spreading table
|
|
|
Table size
|
1100 *1100mm
|
|
Material
|
Aluminum alloy
|
|
Upper operating frequency
|
500Hz (Sine)
|
FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
