Product Details:
|
| Place Of Origin: | Donggaun,china | Warranty: | 1 Year |
|---|---|---|---|
| Core Components: | PLC, Motor | Voltage: | 380V |
| Weight (T): | 8 T | Max. Temperature (°C): | 1600 |
| Ultimate Vacuum(Pa): | ≤6.7Pa (empty And Cold State) | Power (kW): | 180 |
| High Light: | Vacuum Induction Furnace,Vacuum Melting Furnace |
||

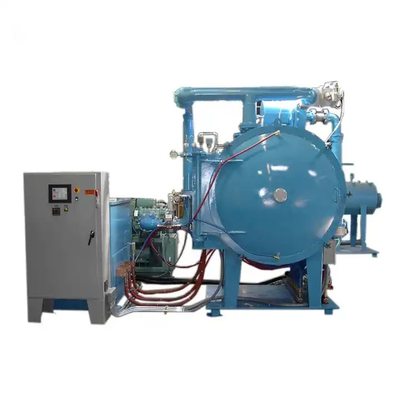

Vacuum Degreasing Sintering Furnace For Ceramic And Metal Parts Products
product presentation:

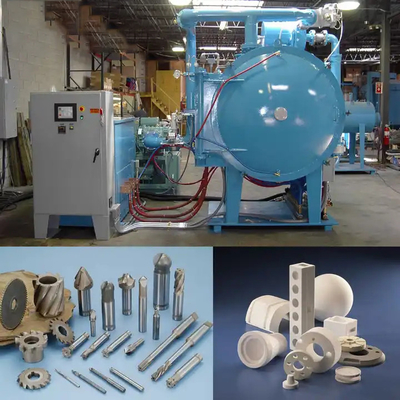

Product DescriptionThe integrated vacuum debinding and sintering furnace is a fantastic industrial furnace for debinding and sintering of powder metallurgy (PM) and metal injection molding (MIM) products including stainless steel, hard alloy, superalloy, high density alloy, ceramic material, magnetic material and NdFeB, etc.This furnace offers continuous operation covering debinding, pre-sintering, sintering and fast cooling, which avoidsrepeatable transport of products, reduces labor load, shortens production cycle, improve efficiency and save energy cost.
| Items | Details |
| Applicable processing products | PM/PIM stainless steel base, hard alloy, high temperature alloy, etc. |
| Rated power | 180kW(adjustable actual power) |
| Power supply voltage | 380V; 50Hz |
| Heating zone | three zones |
| Temperature controlling method | PID |
| Max. working temperature | 1550°C |
| Common working temperature | 1500°C |
| Working zone size | 600*600*1000mm(W*H*L) |
| Heating material | lanthanum molybdenum |
|
Ultimate vacuum degree of unloaded furnace in cold state |
6.7Pa |
| Pressure rising rate | 0.67Pa/h |
| Rated pressure of pneumatic valve gas source | 0.4-0.6MPa |
| Furnace temperature uniformity | ±5°C |
| Gas quenching pressure | ≤10bar |
| Gas pressure constant sintering | adjustable |
| Cooling water | 0.1-0.3Mpa |
| Rated loading capacity | based on bulk density of product |
1. How can I know your factory can produce equipment I need?
Re: Contact us and let us know your requirements of equipment. Then we will send these requirements to our technical department. So we will know whether our factory can offer you equipment or not.
2. Does your company customize equipment for customer?
Re: Yes, we can customize equipment according to customers' requirements.
3. Are you a trade company or a factory?
Re: We are a manufacturer with a huge factory. Warmly welcome to visit our factory and contact with us.
4. How can I believe your quality?
Our equipment are eqquiped with mechanical parts of world renowned brands like Schneider, Omron and so on, and also approved ISO9001 certification.
