Product Details:
|
| Material: | Stainless Steel | Working Temperature: | 1350c |
|---|---|---|---|
| Thermocouple: | S Type | Specification: | 1400C |
| Transport Package: | Standard Export Plywood Case | Heating Element: | Silicon Carbide Rod(Sic) |
| Temp. Uniformity: | ±10°C | Chamber Size (W*D*H) Mm: | 600x800x600 |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||

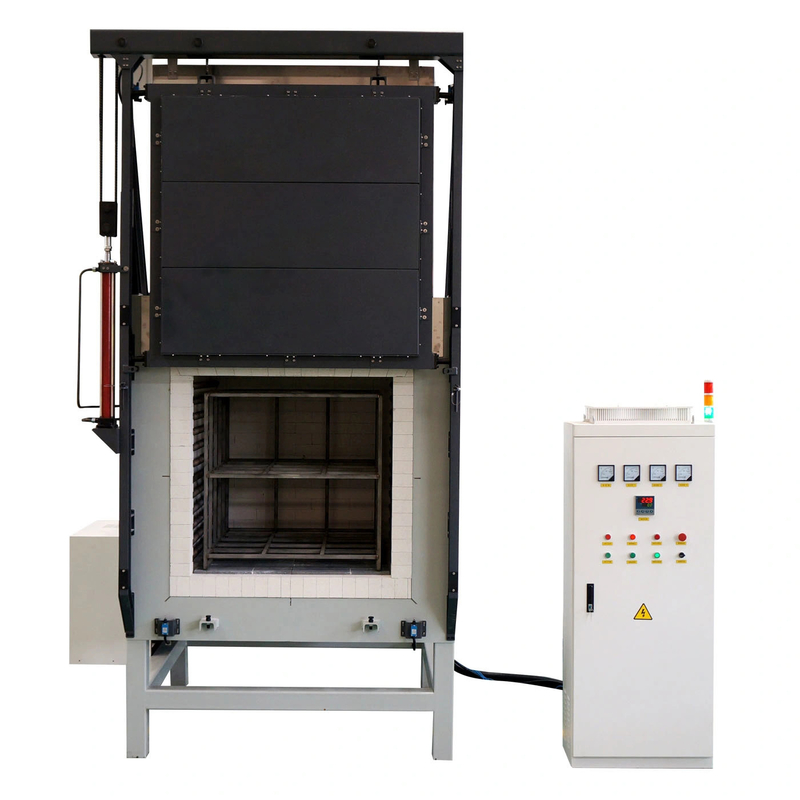

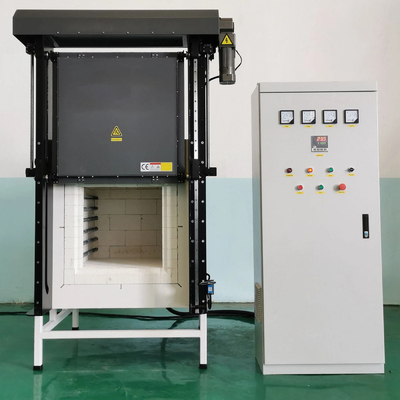

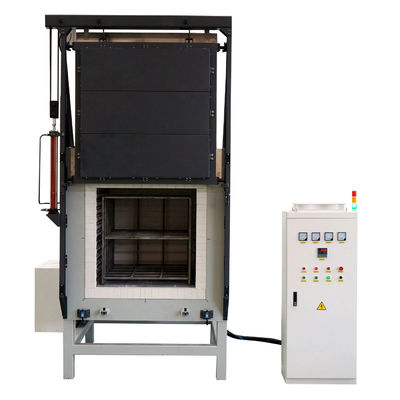

Automatic Lift Door For Laboratory Heat Treatment Industrial Furnace
Mean Features:
1. Industrial furnace, Dual wall housing make sure the body cool during heavy use.
2. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
3. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
4. Built-in computer interface.
5. Long life type N thermocouple.
6. CE certified
| Model | GSKA45-14 | GSKA64-14 | GSKA96-14 | GSKA288-14 |
| Chamber Size (W*D*H) mm | 300x500x300 | 400x400x400 | 400x600x400 | 600x800x600 |
| Power supply | 380V/15KW | 380V/18KW | 380V/21KW | 380V/33KW |
| Type | Benchtop Front-loading |
|||
| Usage | The product is suitable for elemental analysis, measurement and small size steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units,can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating. | |||
| Furnace structure | 1. The furnace is consist of heating system and temperature controller system 2. chamber is consist of insulation material and heating elements 3. Temperature controller is consist of PID controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller |
|||
| Max temperature | 1400ºC | |||
| Working temperature | 1300ºC | |||
| Heating Rate | ≤15ºC/min (suggest 10ºC/min for longer life using of furnace) | |||
| Heating Element | Powerful silicon carbide heating elements ensure quick heating and a uniform chamber temperature | |||
| Chamber material | 1. Furnace Lining: Furnace material is 1400ºC high-purity Light Mullite bricks, 2. Thermal Insulation Material: The furnace is insulated by polycrystalline alumina ceramic fibers with temperature resistance of 1260ºC |
|||
| Temp. Uniformity | ±10°C | |||
| Thermocouple |
N type Feature one testing point, testing from its back wall |
|||
| Temperature Controller | 1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes Intelligent PID 4 group 8 segments program 3. Feature single setpoint digital control, LED display of actual temperature VS set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1ºC |
|||
| Electronic component | SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc. | |||
| Furnace Shell | 1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch |
|||
| Safety Precautions | 1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature |
|||
| Supply Scope | 1. One furnace body 2. One set of temperature controller system 3. Three-meter power line 4. One thermocouple 5. One pair of crucible stongs 6. One pair of high temperature furnace gloves 7. An instruction book |
|||
| Optional Accessories | 1. Alumina boats 2. paperless recorder 3. exhaust chimney |
|||
| Certification | ISO9001 CE SGS | |||
| Warranty |
1. One year of equipment quality guarantee (excluding vulnerable parts: resistance wire, thermocouple, etc.). 2. Damage caused by major manufacturing defects during the warranty period shall be repaired free of charge by the manufacturer 3. The user shall bear the maintenance cost for the damage caused by the user's improper manual operation during the warranty period. 4. Damage occurring after the warranty period, the manufacturer charges the cost of spare parts and labor for paid maintenance. |
|||
