Product Details:
|
| Inner Material: | Carbon Steel/stainless Steel | Temperature Resolution: | 0.1 |
|---|---|---|---|
| Temperture Range: | RT+10℃～500℃ | Warranty Of Core Components: | 1 Year |
| Temperature Uniformity: | ±2℃ | Power: | Electronic |
| Brand Name: | GSKA | Certification: | CE SGS ROHS UL CE |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

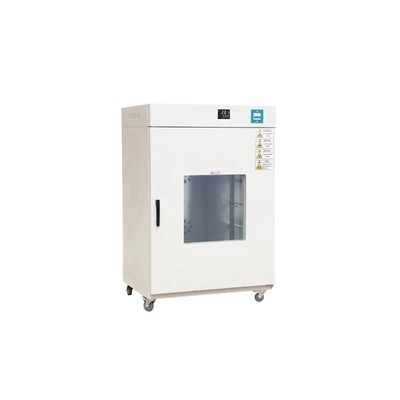

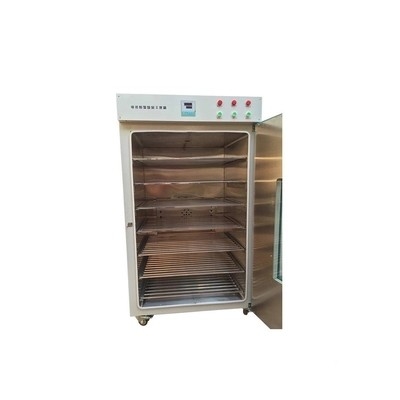

High Temperature Electric Industrial Oven Experiment Furnace Reliable Box
Features vacuum drying oven:
1. Intelligent temperature controller for maximized performance in a wide dynamic range of 480°F (250°C), eliminating the need of human intervention in parameter setting.
2. Evenly distributed heating elements for gentle drying throughout the chamber interior and absolute temperature uniformity.
3. High performance MCU-based temperature controller with advanced PID algorithm to maintain temperature uniformity (+/-1°F) from low temperature to 480°F (250°C).
4. Dual layer observation window with adaptive 1/2" tempered safety glass, as well as force-adjustable door handle, to maintain constant vacuum level even for long-term operation.
5. Good thermal insulation of vacuum chamber for low energy consumption.
6. Easy-to-clean and heavy-duty SUS304 electropolished vacuum chamber.
7. Built-in adjustable temperature limiter and fuse for the protection of both sample and oven. Strong mirror-polished SUS304 shelf plates (each of them has 15kg load capacity).
8. Complete application-specific vacuum drying system contains vacuum drying oven, vacuum pump, fume/mist filter, cold trap & connection kit of various sizes and features.
9. Electrical components are isolated from the inner chamber for the protection of user.
10. Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system.
11. Modular design for easy and cost-effective maintenance and future upgrades.
12. Built-in timer of 9999 minutes/hours.
Features:
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation
function, there are the adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating
source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
customized:
| Chamber and Door | 1. The chamber is structured with stainless steel and welded to bracing pieces. 2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 12", 25 Liter) 3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door. 4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield. 5. Two stainless steel shelves are included to facilitate processing efficiency. |
| Vacuum Pump (optional) |
Ultimate Vacuum Level: 1000 millitorrs. |
| Working Voltage | AC 108 - 240 V 50/60 Hz |
| Input Power | 600W |
| Working Temperature | RT+10 ~ 200°C for the continuous use |
| Temperature Controller | 1. Single point temperature setting 2. Built-in over-temperature protection 3. PID precise temperature control 4. Temperature control accuracy: +/-0.1°C 5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x 6" area only |
| Fittings | This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump. |
| Compliance | CE Certified |
| Warranty | Two years limited warranty with lifetime technical support |
| Attention | 1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality. 2. Please do not place the sample on the chamber bottom directly. |
Chamber materials:
1．Inner chamber materials: SUS stainless steel plate
2．External chamber materials: Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.
3．Insulation material: aluminum silicate glass wool
4．The clapboard Material: Stainless Steel
5．Stainless steel electric heater Material: fin heat pipe type
6．Time control: 0 ~ 999H/M/S adjustable.
7．The rmometry body: T thermocouple
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
