Product Details:
|
| Cold State Voltage Sucks: | >66%Us | Heating Rate: | +20℃~150℃ |
|---|---|---|---|
| Temperature Deviation: | Less Than Or Equal To±1.5℃ | Power: | Electronic |
| Test Voltage: | 500A, 1000A Two Ranges | Short Circuit Time: | 0~9999H/MIN/S |
| Brand: | GSKA | Standard: | GB/IEC/EN/UN38.3/UL |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

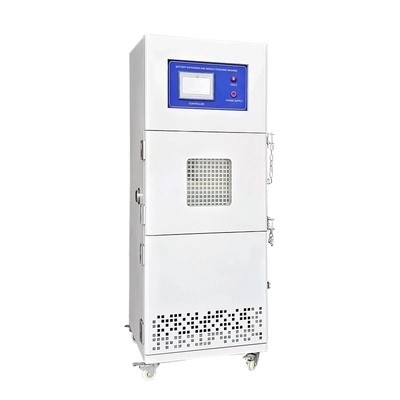

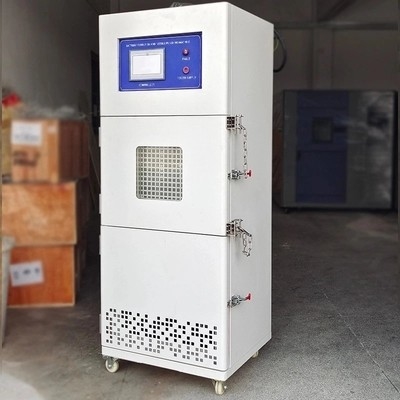

Laboratory Battery Combustion Injection Test Equipment Battery Flame Retardant Test
Product introduction:
The battery combustion jet test equipment is mainly used to test the flame resistance of the battery.
The principle is to place the battery on a flame resistant and high temperature resistant mesh screen (the mesh screen has 20 holes every 25.4mm, and the diameter of the steel wire is 0.43mm), and then light the burner below it (38.1mm above the top of the burner). At the same time, observe the battery combustion until the battery explodes or burns down, and time the combustion process.
Standards:
IEC60086-4:2000,UL1642:1995), UL2054:1997), UL1642 [13], GB8897.4-20026.3.2.9, GB312412014.
Technical Specifications:
1. Burner: inner diameter of pipe orifice is 0.375 inch (9.5 mm) and length is about 100 mm;
2. Bunsen burner can adjust the burning angle of 0-45-90 degrees and is equipped with corresponding angle indicator;
3. Flame application time: 0~99.9 seconds ± 0.1 seconds;
4. Flame height: 10~75 ± 2mm (adjustable);
5. Ignition device: automatic ignition;
6. Width of test cover: 610mm X depth 355mm, octagonal (use double-layer mesh holder to realize rapid replacement of aluminum mesh
7. Height of test cover: 305mm;
8. Test aluminum mesh diameter: 0.010 inch (0.25mm) 16 mesh × 16 mesh;
9. Surface diameter of test round hole: 102mm.
Specifications:
| Impulse voltage | AC 1kv/1.2-50μs(maximum value)1min |
| DC response time | ≤5μs |
| Voltmeter |
Measuring voltage: 0-100V; Display accuracy: F.S ± 0.5% RDG ± 1digit; |
| Maximum short circuit current | 2000A |
| Ammeter |
Measuring current: 0-2000A; Display accuracy: F.S ± 0.5% RDG ± 1digit; |
| Device internal resistance | 80±20mΩ |
| Remote control distance | No solid barrier 7meter |
| Mechanical life | 300,000 times |
| temperature range | RT+10℃ ~ +130℃(adjustable) |
| Temperature fluctuation | 0.5℃ |
| Temperature deviation | 2℃ |
| Observation Window size | 285 x 285mm (10 mm thick) |
| Air inlet | There are two 50mm diameter air patches on the left side of the box (also used to measure voltage, etc.) |
| Bottom of cabinet | The bottom is equipped with four universal pulleys, which can move freely and are fixed. |
| Inner box size | W500 X D500 X H500mm |
| Outer box size | W940 X D780 X H1620mm |
| Cabinet material | Cold rolled plate baking varnish |
| Power Supply | AC 220V10% 50HZ |
| Power | 3.0KW |
| Safety explosion proof |
1. The door is equipped with 10 mm thick double-layer toughened explosion-proof glass, 2. Reinforcing ribs are welded inside the door to make the door more firm and increase the strength 3. The external linked hinge door lock adopts high-strength standard accessories, which is safe, convenient for installation and replacement |
| Controller | PID control system, convenient and intuitive, full-automatic constant temperature, rapid temperature compensation function. Overload automatic power-off system. When the temperature reaches the set time, power-off alarm indication |
