Product Details:
|
| Electrical Life: | Resistive Load 50,000 Times | Heating Rate: | +20℃~150℃ |
|---|---|---|---|
| Temperature Deviation: | Less Than Or Equal To±1.5℃ | Power: | Electronic |
| Test Voltage: | 500A, 1000A Two Ranges | Short Circuit Time: | 0~9999H/MIN/S |
| Brand: | GSKA | Standard: | GB/IEC/EN/UN38.3/UL |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

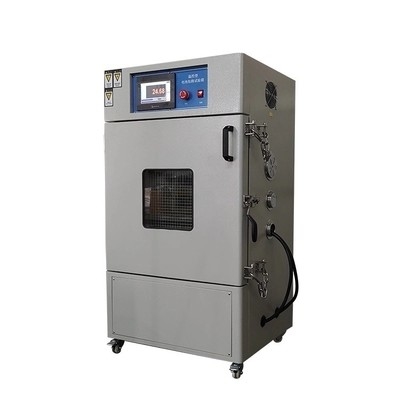

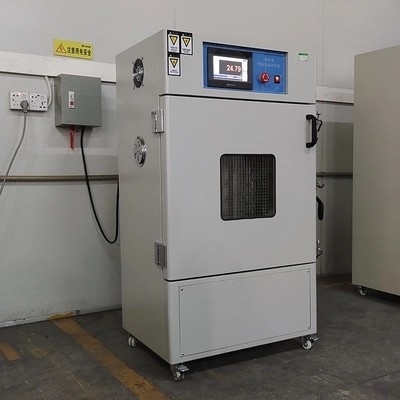

Touch screen lithium battery detection equipment high temperature test chamber
Features:
1. Fix the mesh on top of the burner with 38.1mm distance, each 25.4mm mesh with 20 holes, steel wire diameter 0.43mm.
2. Ignition the burner, simultaneously observe the battery burning situation, till battery explode or burn out. And time the whole burning procedure.
Specifications:
| Impulse voltage | AC 1kv/1.2-50μs(maximum value)1min |
| DC response time | ≤5μs |
| Voltmeter |
Measuring voltage: 0-100V; Display accuracy: F.S ± 0.5% RDG ± 1digit; |
| Maximum short circuit current | 2000A |
| Ammeter |
Measuring current: 0-2000A; Display accuracy: F.S ± 0.5% RDG ± 1digit; |
| Device internal resistance | 80±20mΩ |
| Remote control distance | No solid barrier 7meter |
| Mechanical life | 300,000 times |
| temperature range | RT+10℃ ~ +130℃(adjustable) |
| Temperature fluctuation | 0.5℃ |
| Temperature deviation | 2℃ |
| Observation Window size | 285 x 285mm (10 mm thick) |
| Air inlet | There are two 50mm diameter air patches on the left side of the box (also used to measure voltage, etc.) |
| Bottom of cabinet | The bottom is equipped with four universal pulleys, which can move freely and are fixed. |
| Inner box size | W500 X D500 X H500mm |
| Outer box size | W940 X D780 X H1620mm |
| Cabinet material | Cold rolled plate baking varnish |
| Power Supply | AC 220V10% 50HZ |
| Power | 3.0KW |
| Safety explosion proof |
1. The door is equipped with 10 mm thick double-layer toughened explosion-proof glass, 2. Reinforcing ribs are welded inside the door to make the door more firm and increase the strength 3. The external linked hinge door lock adopts high-strength standard accessories, which is safe, convenient for installation and replacement |
| Controller | PID control system, convenient and intuitive, full-automatic constant temperature, rapid temperature compensation function. Overload automatic power-off system. When the temperature reaches the set time, power-off alarm indication |
