Product Details:
|
| Temp. Control: | Room Temperature | Heating Rate: | +20℃~150℃ |
|---|---|---|---|
| Temperature Deviation: | Less Than Or Equal To±1.5℃ | Power: | Electronic |
| Test Voltage: | 500A, 1000A Two Ranges | Short Circuit Time: | 0~9999H/MIN/S |
| Brand: | GSKA | Standard: | GB/IEC/EN/UN38.3/UL |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

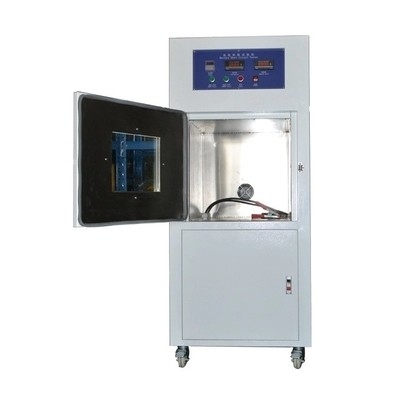

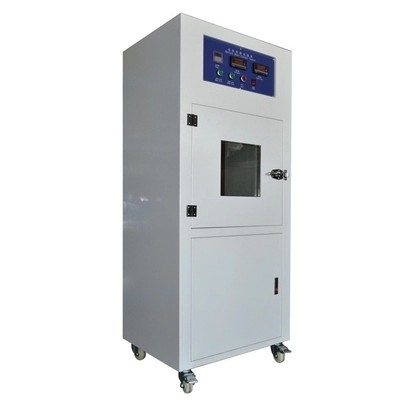

Laboratory high altitude simulation battery testing machine
Product Overview :
1, lithium battery short circuit tester integrated a variety of battery short circuit test standard requirements and design, according to the standard requirements of short circuit device must meet the internal resistance range of ≤ 5mω, so as to obtain the maximum short circuit current test requirements; In the circuit design of the short circuit devices also must be able to withstand the impact of high current, so we choose the industrial-grade dc electromagnetic contactor and copper wiring terminal and internal copper diversion, generous COINS, effectively increase the cooling effect of the large current short circuit devices are safer and reduce the wastage of the testing equipment, to ensure the accuracy of the test data.
2, lithium battery short circuit tester adopts PLC automatic control, simulation battery external short circuit, meet UL1642, UN38.3, IEC62133, GB/T18287, GB/T 31241-2014 and other standards. Cell voltage, current and surface temperature changes were recorded. The short circuit tester must have a resistance of 80± 20Mω throughout the circuit (including circuit breakers, wires and connected devices), and each circuit can withstand a peak short-circuit current of 1000A.
Short circuit stop mode can be selected:
1. Short circuit time;
2. Battery surface temperature
What is a Battery Testing Machine Internal Short Circuit Tester - Room Temperature Type
The room temperature battery short circuit testing machine is used to test the battery at room temperature in a certain resistance short connection under the condition of whether there will be an explosion, fire phenomenon, at the same time through the relevant instrument shows when its short-circuit maximum current.
Performance Parameters:
| Product Model: | ABSC-N (Standard or customized) |
| Temp. Control: | Room Temperature |
| Surge voltage: | AC 1kV/1.2~50μs(peak voltage)1min |
| Testing Voltage: | 0~100V |
| Short-Circuit Current: | 500~1000A |
| DC Response Time: | ≤5μs |
| Internal Impedance: | ≤5mΩ |
| Operate Time: | Operate time / release time ≥30ms |
| Operating Characteristics: | Cold-state Pull-in Voltage ≥ 66%Us, Cold-state release voltage ≥30%Us, ≤5%Us |
| Interior Size: | W500xH500xD500mm |
| Exterior Size: | W680xH1600xD830mm |
| Machine Weight: | 80kg |
| Power Supply: | AC220V, 50Hz/60Hz |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
