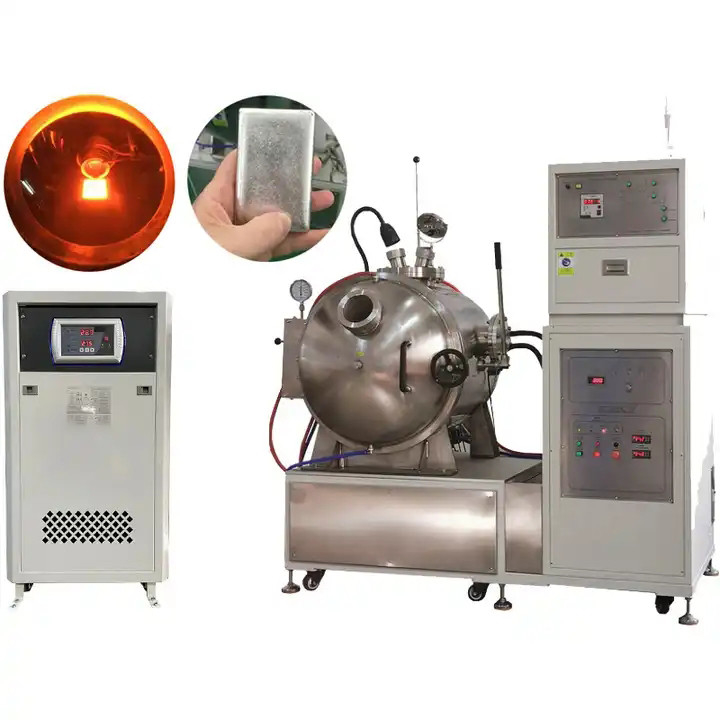

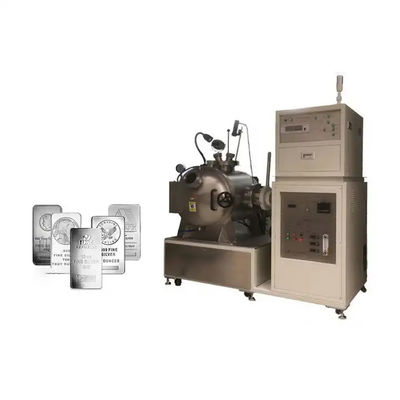

2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching

Large Image : 2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	GSA-T57

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiate
Packaging Details:	Export package
Delivery Time:	15-30working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	160 Set / Sets per Month

Contact Now

2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching

Description

Brand Name:	GSKA	Type:	Vacuum Induction Furnace
Voltage:	380V/50HZ, 380V	Quality Certification:	CE SGS ROHS UL
Weight (T):	0.5 T	Power:	15KW/30KW
Dimension(LWH):	1500x1200x1750mm	Max. Temp:	2200°C
Highlight:	Vacuum Induction Furnace , Vacuum Melting Furnace

2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching

product presentation:

The design of this equipment system is based on the actual needs of the project and process, using modern high-tech technology.

1. Adopt German high-frequency heating technology, automatic frequency tracking and multiple protection technology, which can be melted in a short time, energy saving and environmental protection, and high work efficiency.

2. The closed type + high vacuum/inert gas protection melting chamber can prevent the oxidation of molten raw materials and prevent impurities from mixing in. This equipment is suitable for the casting of high-purity metal materials or easily oxidized elemental metals.

3. Adopting a closed + high vacuum/inert gas protection melting chamber, melting, refrigerating, and secondary feeding are performed at the same time, which greatly improves production efficiency. The product has the characteristics of no oxidation,low loss, no porosity, no segregation in color, and beautiful appearance.

4. With the electromagnetic stirring function under the protection of inert gas, there is no segregation in color.

5. Using Mistake Proofing (anti-fuzzy) automatic control system, the operation is more convenient.

6. The high-vacuum melting equipment is independently researched and developed and manufactured with advanced technology. It is specially used for the melting and casting of platinum, palladium, gold, silver, copper and other alloys.

7. This equipment uses Mitsubishi PLC program control system, SMC pneumatic and Panasonic servo motor drive and other well-known brand components at home and abroad.

MODEL NO.	GSA-T57
Power	15KW/30KW
Voltage	380V ; 50/60Hz
Max Temp	2200°C
Temp Accuracy	±1°C
PID temp control	Optional
Capacity	1 - 2 kg; 10kg Platinum
Application	Platinum, Palladium, Gold, silver, copper and other alloys
Cooling type	Water chiller(sold separately)
Vacuum Degree	German original vacuum pump, vacuum degree 10-2 Pa (Optional)
Shielding Gas	Nitrogen/Argon
Operation Method	One-key operation to complete the entire process, POKA YOKE foolproof system
Control System	Mitsubishi PLC+Human-machine interface intelligent control system (optional)

2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching 0

2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching 1

2200℃ High Temperature Vacuum Induction Furnace Can Be Used For Steel Quenching 2

FAQ

Q: Are you manufacturer?

A: Yes, we are the original manufacturer of the highest quality products for precious metals smelting and casting equipment, especially for high

tech vacuum and high vacuum casting machines.

Q: How long does your machine warranty last?

A: Two years warranty.

Q: How is your machine quality?

A: Definitely it's the highest quality in China in this industry. All machines apply the best world famous brands name parts. With great workmanship

and reliable highest level quality.

Q: Where are your factory located?

A: We are located in Dongguan, China.

Q: What can we do if we have problems with your machine while using?

A: First, our induction heating machines and casting machines are with highest quality in this industry in China, customers usually could use it for

more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, we'll need you to provide

us a video to describe what the problem is so that our engineer will judge and find out the solution for you. Within warranty period, we'll send you

the parts free of charge for replacement. After warranty time, we'll provide you the parts at an affordable costs. Long lifetime technical support is

offered freely.
