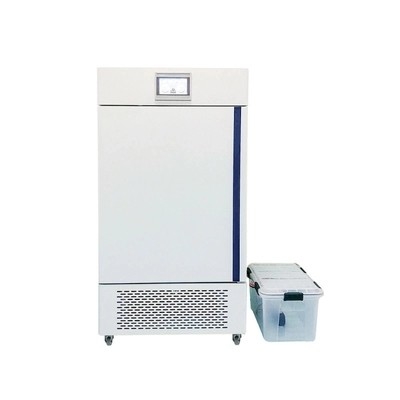

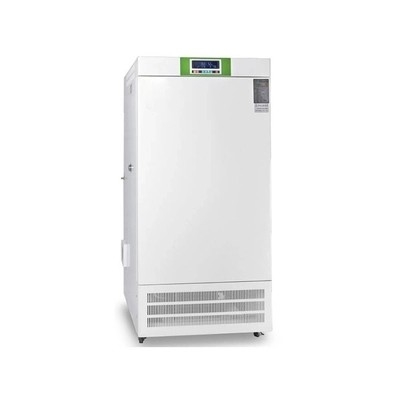

Product Details:
|
| Humidity Range: | 20% ~ 98% R.H | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||
Main Functions of Equipment:
This series of products can simulate various temperature and humidity environments. The system meets the reliability test specifications: GB/T 2423, GJB150A1/43 CNS, ISO, JIS, ASTM, DIN, BS, IEC, NACE, UL, MIL... Satisfies various natural environment reliability machine stability performance and other parameters, will provide you with the basis for predicting and improving product quality and reliability.
Widely used in industries such as electronic and electrical components, military industry, plastics, hardware, optoelectronics, chemical industry, etc., such as: electronic parts, automotive parts, notebooks and other products for high and low temperature alternating humidity and heat test or constant test, virtual climate environment test, in high and low temperature or humidity and heat environment, testing its performance indicators, and quality management.
Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
Technical Specification:
| Interior Dimension (mm) | 400×500×400 | 500×600×500 | ||
| Overall Dimension (mm) | 90×142×100 | 100×152×110 | ||
| Interior Dimension (mm) | 600×850×800 | 800×1000×1000 | ||
| Overall Dimension (mm) | 1210×1140×1960 | 1280×1480×2030 | ||
| Parameter | Temp. range | Model S:-70°C~+150°C ,Model L: -40°C~+150°C | ||
| Humidity Range | 20% ~ 98% R.H | |||
| Humidity bias | +2~-3%R.H | |||
| Temp. fluctuation | ≤±0.5°C | |||
| Temp. uniformity | ≤2°C | |||
| Heating rate | 1.0~3.0°C/min | |||
| Cooling rate | 1~1.5°C/min | |||
| Material | Shell material | High-quality SUS304 stainless steel plate | ||
| Liner material | High-quality SUS304 stainless steel plate | |||
| Insulation materials | Ultra-fine glass fiber insulation cotton / rigid polyurethane foam | |||
| Door seal | Double resistance to high and low temperature aging and hardening of refined silicone seal | |||
| Cold and heat exchange system | Controller | JIANQIAO Special color touch screen Controller | ||
| Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C | ||||
| Circulatory system | Temperature low-noise motors, cycles, , stainless steel multi-leaf type centrifugal fan,the test time can set 999999 hours | |||
| Water supply | Electronic device controller automatic control of liquid, and more than recycled water, with water alarm | |||
| Humidification mode | External isolated, stainless steel electric steam humidification mode occurs | |||
| Dehumidification mode | Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts | |||
| Refrigeration | Unit cooling mode / Dual (cascade) cooling method (air-cooled) | |||
| Condenser/ Evaporator | Tecumseh | |||
| Compressor | France " Tecumseh " closed refrigeration compressor / France "Taikang" Hermetic Refrigeration Compressors | |||
| Security Devices | Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection | |||
| Standard |
Resistant to high and low temperature heat tempered glass hollow glass windows: 300 × 200 (mm), a lighting, , the two sample holder, |
|||
| Power supply | ACø220V·50HZ/380V·50HZ | |||
| Ambient temperature | 15°C~+30°C ≤85%R.H | |||
Working principle:
Easy To Operating Temperature Humidity Chamber (heating and cooling) and humidification is composed of two parts. Through installation in box within top Department of rotating fan, will air row into box achieved gas cycle, and balance box within of temperature, and humidity, by box built-in of temperature, and humidity sensor collection of data, biography to temperature, and humidity controller (micro information processing device) for edit processing, issued thermostat adjustable wet instruction, through air heating unit, and condensation tube and sink within heating evaporation unit of common completed.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
