Product Details:
|
| Place Of Origin: | Guangdong, China | Voltage: | 380V |
|---|---|---|---|
| Weight (T): | 30 T | Warranty: | 1 Year |
| Power (kW): | 380 | Product Name: | Box Type Furnace |
| Authentication Certificate: | CE SGS ROHS UL | Brand: | GSKA |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||

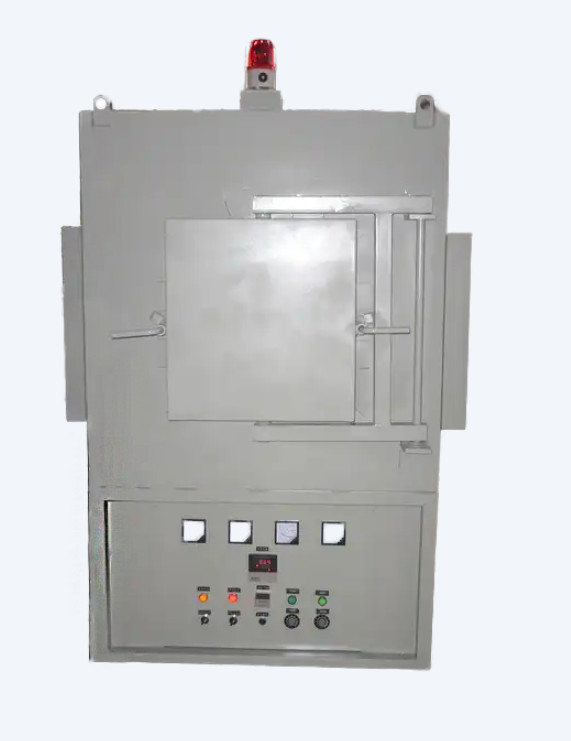

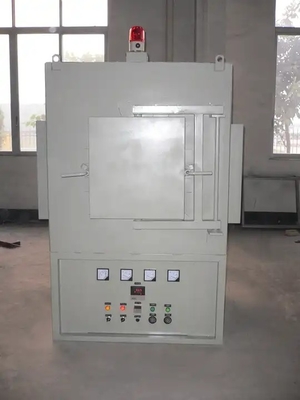

1400C Medium Temperature Box Furnace For Heat Treatment In The Ceramic Industry
product presentation:
Medium temperature box furnace is designed for the discharge, pre-firing and firing of ceramic materials, electronic components, magnetic materials, powder metallurgy and other products. It can also be used for heat treatment process of other materials. The arrangement. The 64 program control instrument equipment imported from Japan has the advantages of stable temperature control, superior performance, low energy consumption, clean furnace and so on. It is very suitable for medium and small batch production and scientific research in enterprises. The thermal materials of the resistance furnace are made of high-quality energy-saving imported foam bricks and fiber products. The heating elements are made of imported KTL resistance wire which is threaded through corundum tube to heat the five sides of the heating tube
|
project
|
Indicator value
|
||
|
Rated voltage
|
220V/380V
|
||
|
Design temperature
|
800℃,1000℃,1200℃,1400℃,1600℃,1700℃,1800℃
|
||
|
heating rate
|
≤0.1-40℃/min(Adjustable)
|
||
|
Heating element
|
High quality imported resistance wire/high quality U-shaped silicon carbide rod/high quality U-shaped silicon molybdenum rod
|
||
|
control accuracy
|
±1℃
|
||
|
temperature control
|
LCD touch screen PLC control, PID regulation, intelligent microcomputer control, multi section programmable temperature control
curve, no need to watch (fully automatic temperature rise, thermal insulation, door opening and power off)
|
||
|
Temperature measuring element
|
K(0-1300℃)/S(0-1600℃)/B(0-1820℃)
|
||
|
Furnace material
|
Ceramic polycrystalline fiber/alumina fiber/composite alumina fiber/high-purity composite alumina fiber/imported fiber
|
||
|
Furnace door structure
|
Side open front door
|
||
|
Heat dissipation mode
|
Double shell, air insulation
|
||
|
Surface temperature rise
|
≤30℃
|
||
|
Certificate
|
CE
|
||
|
Random gift
|
2 heating rods,2 rod tools,,1 crucible clamp,1 pair of fire-resistant gloves,,1 furnace bottom plate,1 copy of certificate of,conformity
|
||
|
remarks
|
Any size can be customized
|
||
FQA:
Q: If I need a special furnace design, can you provide it?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q:If we buy your products, will your company provide any training or technical support?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: How about your after-sales guarantee?
A: We provide one year's service for our products (excluding heating elements), and three months' service for heating elements
Q: Do you have accessories for your product? A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers, High-Temperature Gloves).
